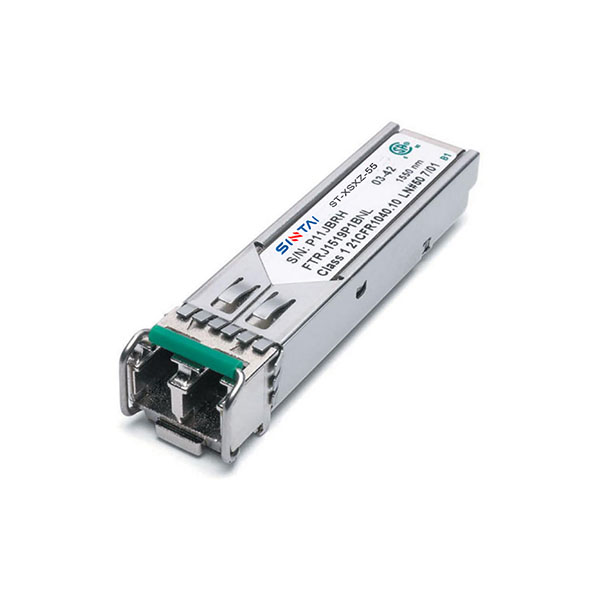

SFP Single Mode Transceiver

SFP Single Mode Transceiver

  • SFP Single Mode Transceiver

Designed for Ethernet, Fiber Channel, SDH, SONET, or CPRI links over duplex single-mode fibers, the Sintai SFP single-mode optical transceivers use 1310nm or 1550nm wavelength and support transmission distance up to 120km.

SFP Single Mode Transceiver PDF Download Contact Us

SFP Single Mode Transceiver Feature

  • Adopt SFP hot-swappable encapsulation with LC interface.

  • Support the rate of 1.25 or 2.67Gb/s with downward compatibility.

  • Support specification of singe mode.

  • Suitable for networks such as Ethernet/ FC/ SDH/ SONET/ CPRI.

  • Single-mode optical fiber supports a transmission distance of up to 120km.

  • Built-in DDM (digital diagnostic monitoring function).

  • Working temperature: 0°C ~ +70°C.

  • Comply with RoHS standards.


SFP Single Mode Transceiver Overview

The 1.25 or 2.5G SFP optical communication module launched by Sintai Communication Co., Ltd contains a wide range of products to support a variety of application scenes, including dual fiber bidirectional, single fiber bidirectional, CWDM, DWDM transmission.


The module conforms to the MSA protocol, and it has the characteristics of low power consumption, small size, multi-rate, and good compatibility with different network applications, such as Ethernet/ SDH/ SONET/ CPRI/ FC. The transceiver conforms to the RoHS standard and supports the digital diagnostic function.


The single-mode optical transceiver can be used at the client-side with a transmission distance of up to 120 km.


SFP Single Mode Transceiver Specification

Model

Description

Transmission distance

Working

wavelength

Transmitting power

Receiving sensitivity

Overload power

(km)

(nm)

(dBm)

(dBm)

(dBm)

ST-SSGL-31

SFP, single-mode, 1.25G, dual fiber

10

1310

-9~-3

≤-22

-3

ST-SSGE-31

SFP, single-mode, 1.25G, dual fiber

40

1310

-5~0

≤-24

-1

ST-SSGZ-55

SFP, single-mode, 1.25G, dual fiber

80

1550

0~5

≤-24

-1

ST-SSGU-55

SFP, single-mode, 1.25G, dual fiber

120

1550

0~5

≤-31

-9

ST-SSSL-31

SFP, single-mode, 2.5G, dual fiber

20

1310

-5~0

≤-18

0

ST-SSSE-31

SFP, single-mode, 2.5G, dual fiber

40

1310

-2~3

≤-18

0

ST-SSSZ-55

SFP, single-mode, 2.5G, dual fiber

80

1550

0~5

≤-28

-9

ST-SSSU-55

SFP, single-mode, 2.5G, dual fiber

120

1550

0~5

≤-30

-10
