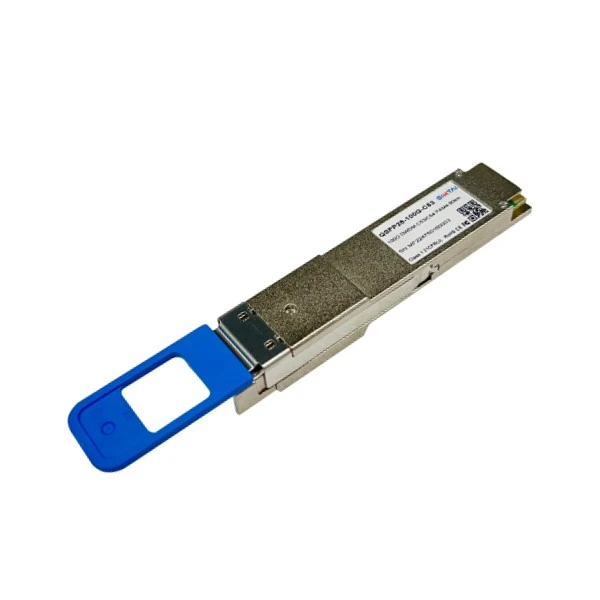

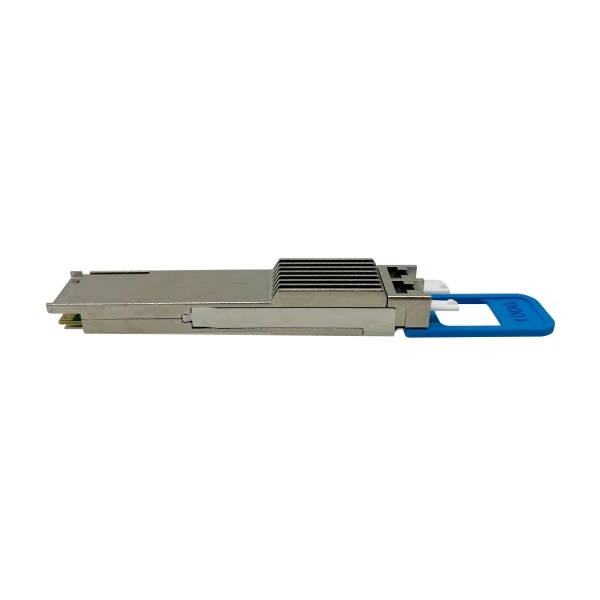

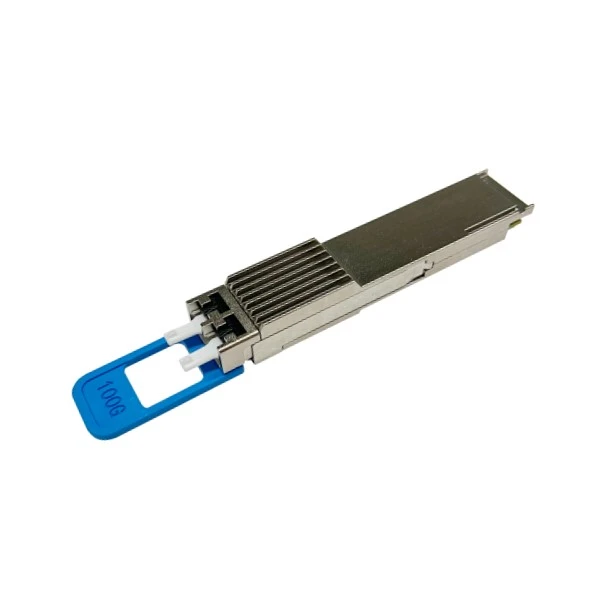

100G QSFP28 PAM4 DWDM Transceiver

100G QSFP28 PAM4 DWDM Transceiver

  • PAM4 100G
  • 100g pam4
  • qsfp28 pam4
  • 100g pam4 qsfp28
  • PAM4 module
  • PAM4 100G
  • 100g pam4
  • qsfp28 pam4
  • 100g pam4 qsfp28
  • PAM4 module

The 100G QSFP28 DWDM (2λ) optical module from Sintai Communication Co., Ltd. is designed for 80km data center interconnection in metro area. The module can convert 4 x 25Gbps (NRZ) electrical signals to 2 x 50Gbps (PAM4) optical signals, and also convert 2 x 50Gbps (PAM4) optical signals to 4 x 25Gbps (NRZ) electrical signals, providing a total of 96 nominal DWDM wavelengths (50GHz interval) in the C-Band 191.30THz~196.05THz range, intended for deployment in DWDM network equipment in metro access and core networks. The electrical interface of the module is QSFP28 MSA compliant.


100G QSFP28 PAM4 DWDM Transceiver PDF Download Contact Us

Product Features


  • Supports 100Gbps

  • Applicable to C-Band 50GHz DWDM wavelength as defined by ITU-T standard

  • Transmission distance up to 80km (with EDFA and DCM)

  • Compliant with QSFP28 MSA standard

  • Integrated SFEC capability with high coding gain

  • 4x25G CAUI4 electrical interfaces

  • Dual CS optical interfaces

  • I2C interface with integrated digital diagnostics

  • Supply voltage: 3.3V

  • Operating temperature: 0°C to +70°C

  • Power consumption:<5W

  • RoHS-6 compliant (lead-free)

Applications

  • 100GE over DWDM

  • Data Center Interconnection

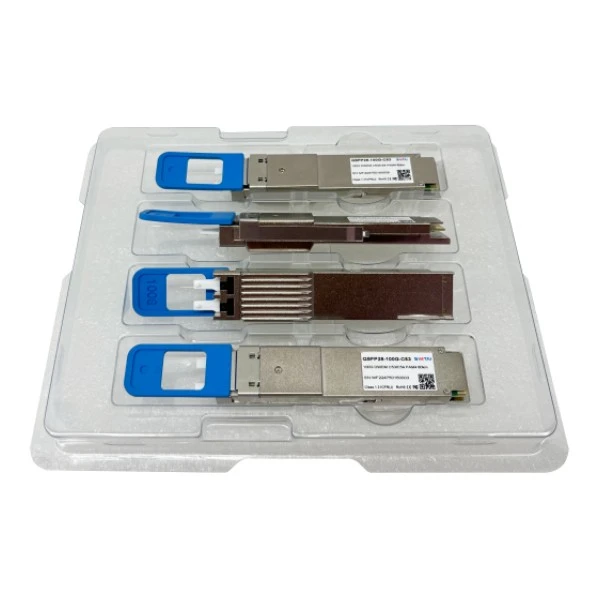

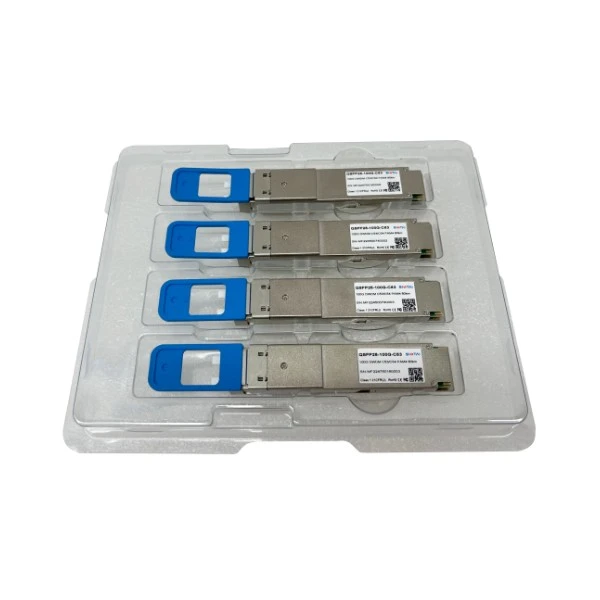

Package

Model

Rate

Transmitting optical power

Receiving sensitivity

Interface


QSFP28




ST-QDCZ-C13/142



103.125Gbps




-1 ~ +4dBm


-12.5dBm@BER 4E-3


Dual CS
