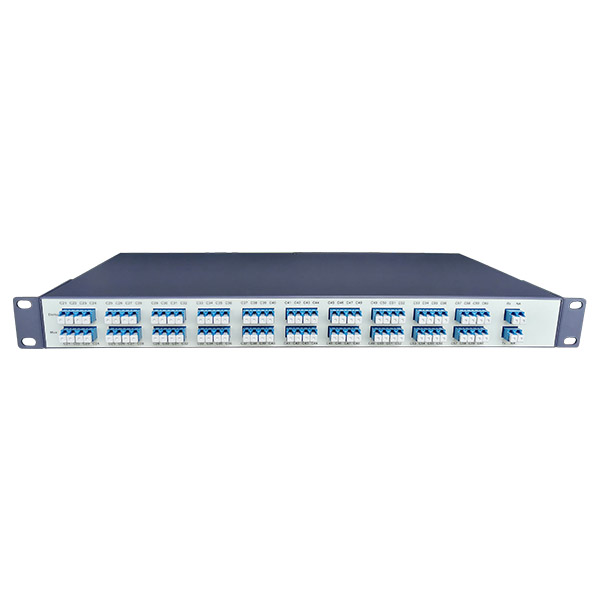

1U Rack Mount Double 40CH AWG

1U Rack Mount Double 40CH AWG

  • 1U Rack Mount Double 40CH AWG

The integrated 1U rack mounts double 40-channel AWG system with mux and de-mux launched by Sintai Communication Co., Ltd. can improve communication capacity, expand bandwidth, and solve the shortage of fiber resources effectively based on the existing network.


With the ever-growing shortage of fiber resources, it's difficult for operators to install cables, and the prices of leasing cables are high for industry clients. In network construction, improving the utilization of the existing fiber cable is the most urgent technology for the clients.


The integrated 1U rack mounts double 40-channel AWG system with mux and de-mux launched by Sintai Communication Co., Ltd. can improve communication capacity, expand bandwidth, and solve the shortage of fiber resources effectively based on the existing network, which provide clients with an expansion solution of the optical fiber transmission with low cost and high performance. One device can realize dual-fiber transmission of 40 channels' independent service.


1U Rack Mount Double 40CH AWG PDF Download Contact Us

1U Rack Mount Double 40CH AWG Feature

  • 1U 19-inch standard rack

  • Dimension of the equipment: 44 mm (h) x 442 mm (w) x 220 mm (d)

  • Support double 40 DWDM channels

  • Adopt the modular design

  • Rapid service deployment without changing the original network structure

  • Transparent transmission without affecting the carrying service


1U Rack Mount Double 40CH AWG Specification

Item

Unit

Parameter



Gauss

Flat top

ITU

GHz

±12.5

Channel Spacing

nm

0.8nm(100GHz)

Channel Number


Double 40

Wavelength accuracy

nm

≤0.05

Channel Insertion Loss

dB

≤5.0

≤5.5

-1dB Bandwidth

nm

≤0.2

≤0.34

-3dB Bandwidth

nm

≤0.4

≤0.51

Adjacent Channel Isolation

dB

≥25

Non-Adjacent Channel Isolation

dB

≥30

Total isolation

dB

≥22

≥23

Channel Ripple

dB

≤1.5

Return Loss

dB

≥45

Directivity

dB

≥50

PDL

dB

≤0.5

PMD

ps

≤0.5

Power Handling

mW

≤300

Operating Temperature

°C

-10~+70

Storage Temperature

°C

-40 ~+85

Fiber Type

-

Corning SMF-28e Ultra

Package Size

mm

Standard 1U 19", 44(H)x442(W)x220(D)
