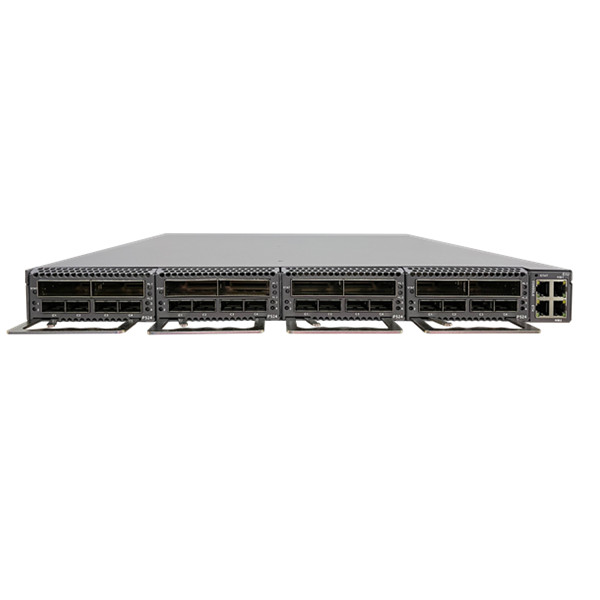

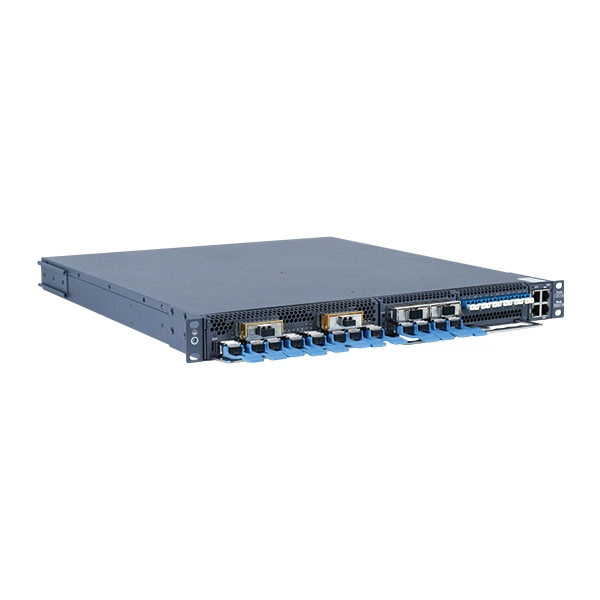

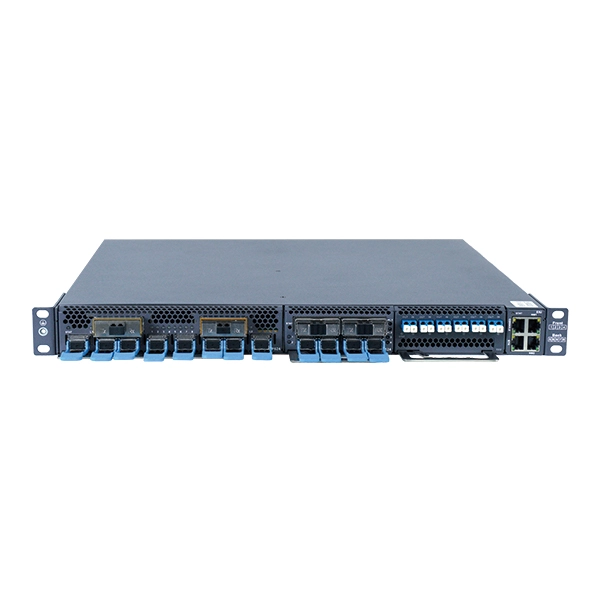

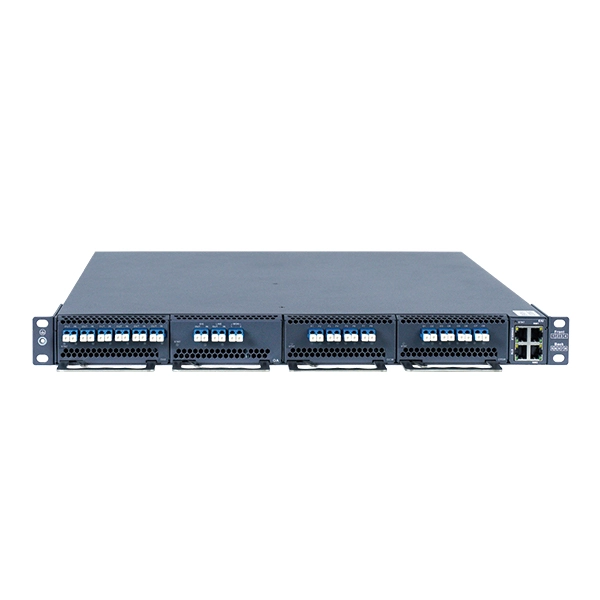

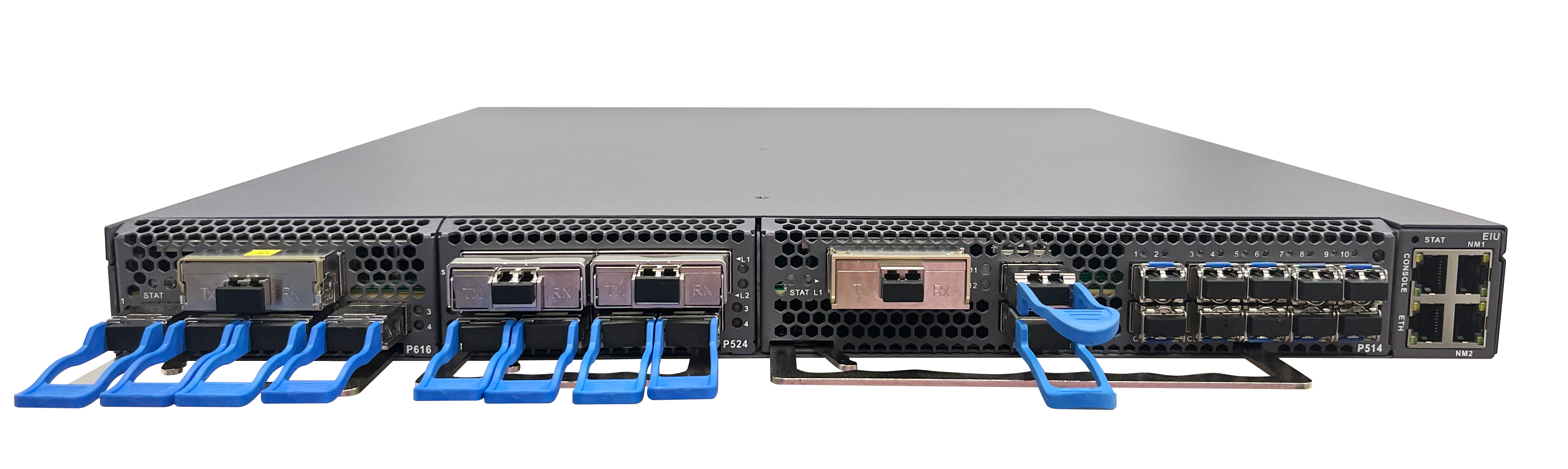

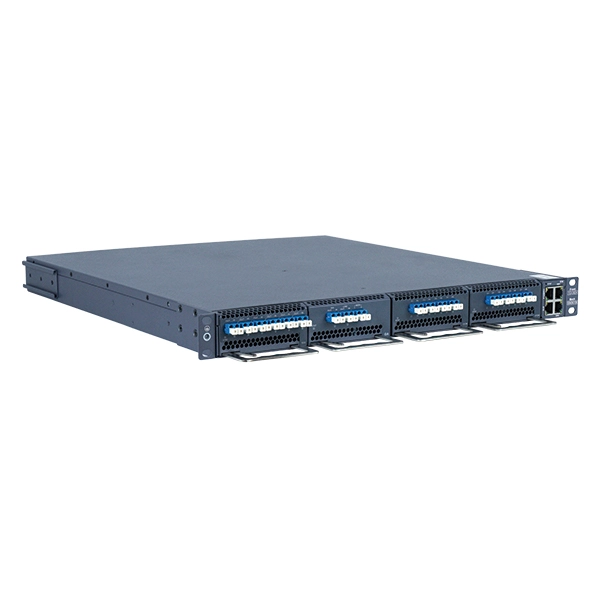

OTNS8600-DCI4 is an optoelectronic integrated WDM transmission platform designed for Data Centre Interconnection (DCI) by Guangzhou Sintai Communication Co., Ltd, features high integration (optoelectronic integration), large bandwidth (25.6Tbits / Fiber), simple deployment (no complicated tuning), easy operation and maintenance (NETCONF / YANG) and safety and reliability. It can meet the rapidly growing bandwidth demand between DCs, achieve flexible deployment of equipment, create an open optical network architecture and lead the DCI market into a new era of high-speed all-optical interconnection.


1.6T 1U Platform PDF Download Contact Us

Features of 1.6T 1U DCI/OTN Platform

  • Adopt optoelectronic integrated, pluggable modular design; components support hot-plugging, deploy and expand on demand.

  • Front-air and rear-air cooling design,1+1 FRU fan units available, automatic speed adjustment supported.

  • 19" / 800mm depth cabinet can be installed, suitable for data center rooms and can be deployed with IT equipment in common cabinets.

  • Transmission capacity up to 25.6Tbit/s per pair @ C+ band 400G*64λ, up to 1.6 Tbit/s per subrack.

  • Single wave capacity up to 400G, continuous evolution towards 600G & 800G & 1.2T.

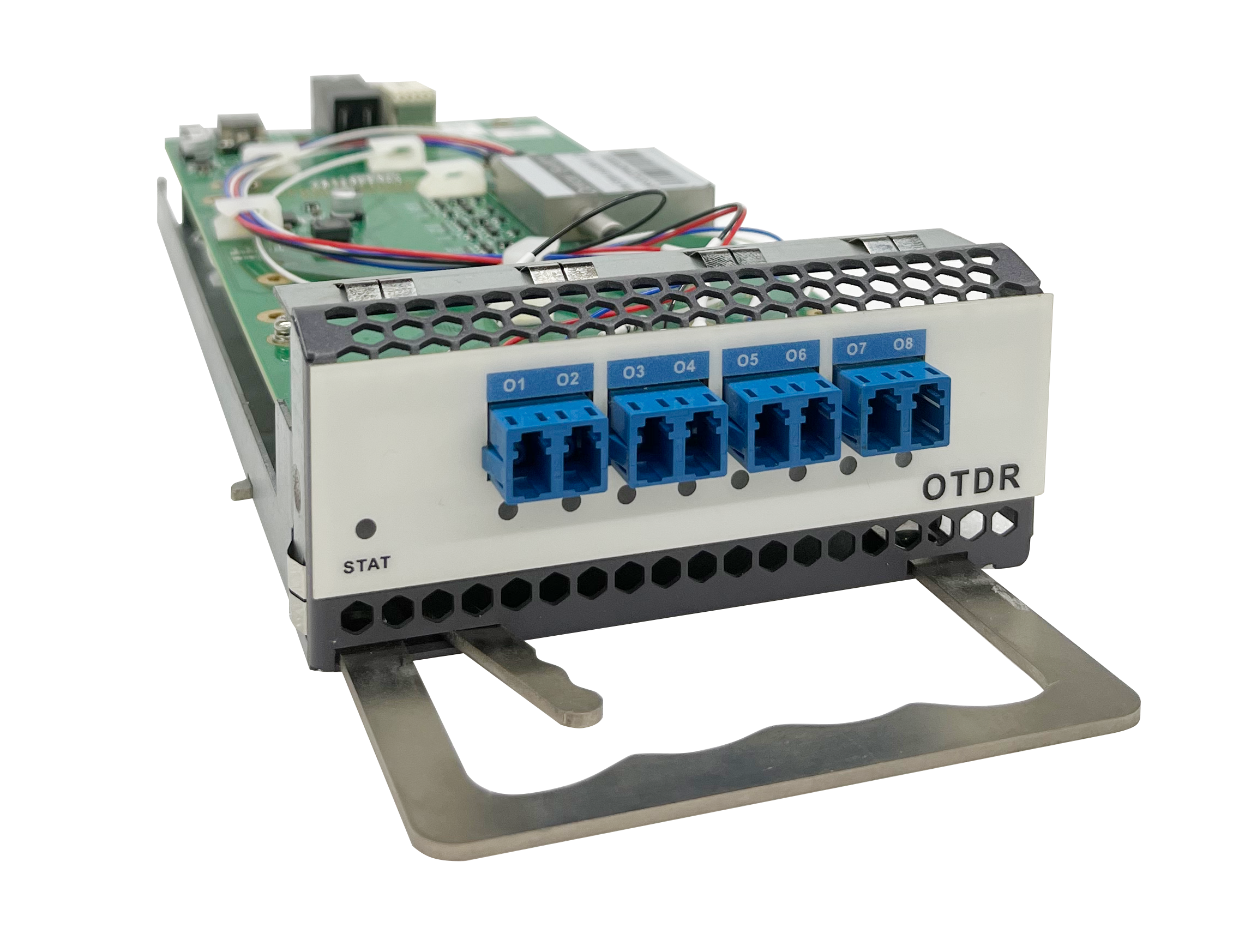

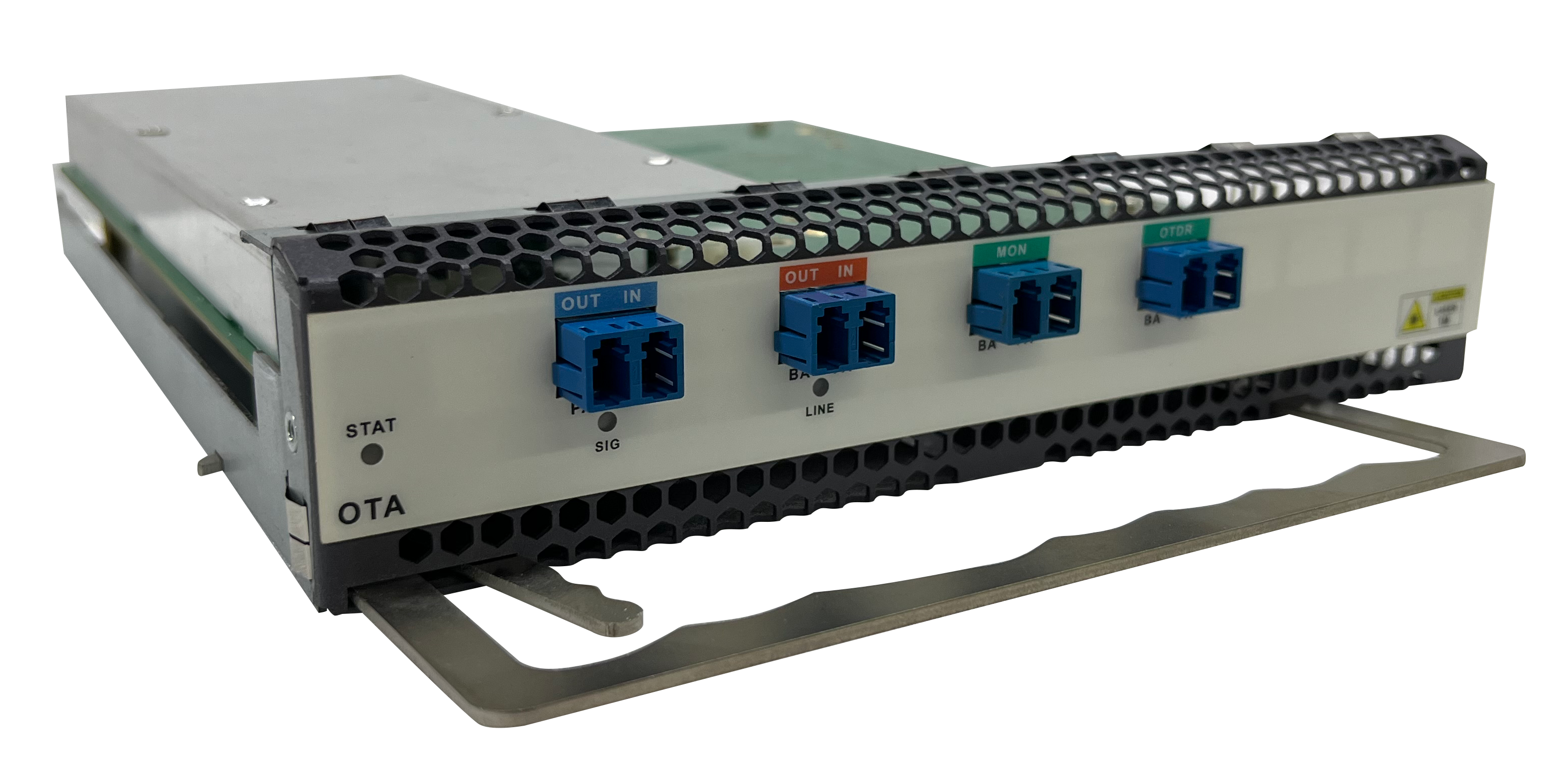

  • Optical layer card highly integrated with OA, WSS, VOA, OSC, OTDR, OCM, OLP, etc. to simplify internal fiber connectivity.

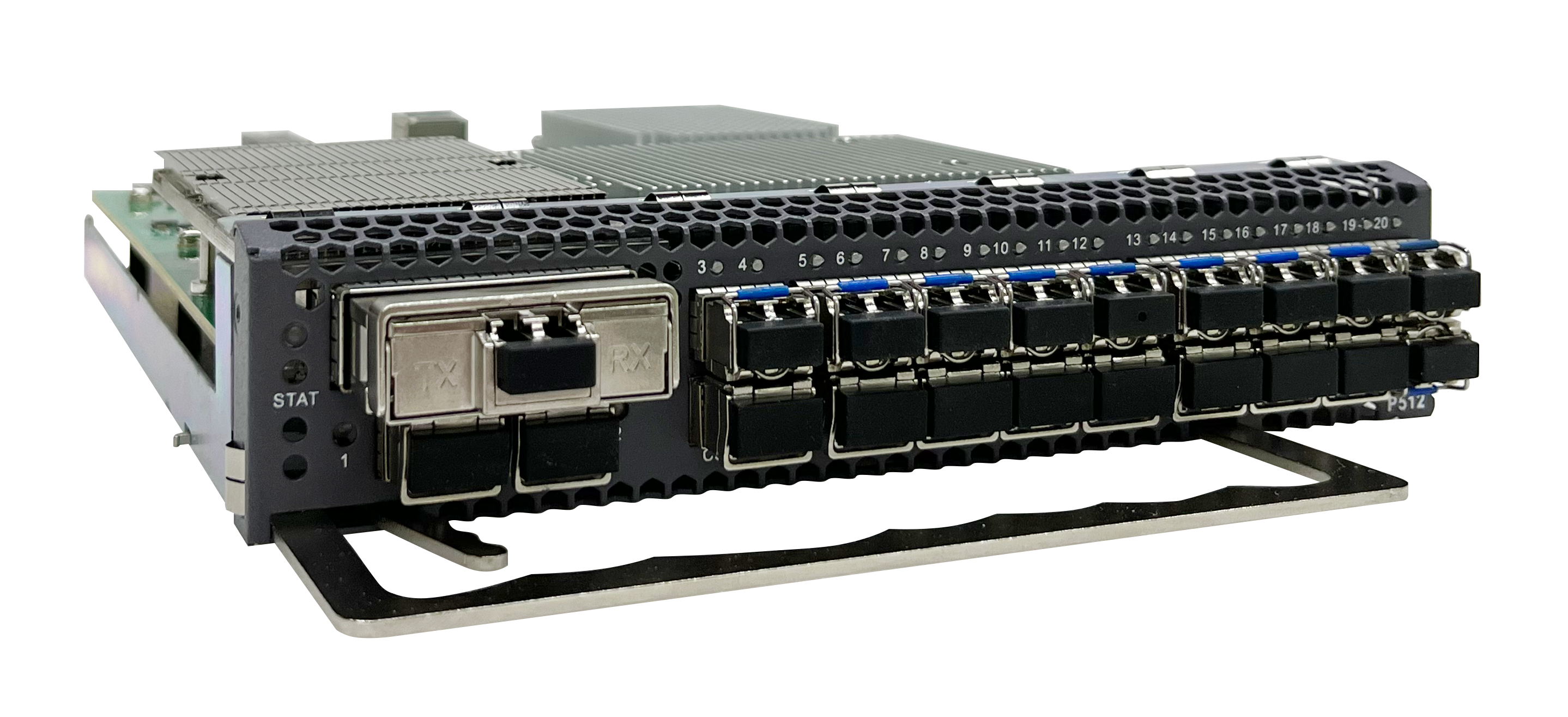

  • Supports 10GE, 100GE, 100GE FlexE (Unware), 400GE, STM-64, 10GE WAN, OTU2, OTU4 and other service access.

  • Supports 9-dimensional ROADM networking and FlexGrid.

  • Supports comprehensive performance monitoring and quality visibility at the service, OTN and optical layers.

  • Provides multiple multi-layer network-level and device-level protection solutions. Protection reversal delay<50ms, ensuring superior protection  performance.

  • Supports NETCONF/YANG standard open interface and GUI management platform based on B/S architecture.



Specifications of 1.6T 1U DCI/OTN Platform

Parameter

Description

Chassis

Dimensions (H x W x D)

1U: 44 mm (H)×444 mm (W)×490 mm (D)


Maximum capacity

1.6Tbit/s


Number of service card slots

4


Applicable cabinets

19’’ cabinet 800mm or deeper

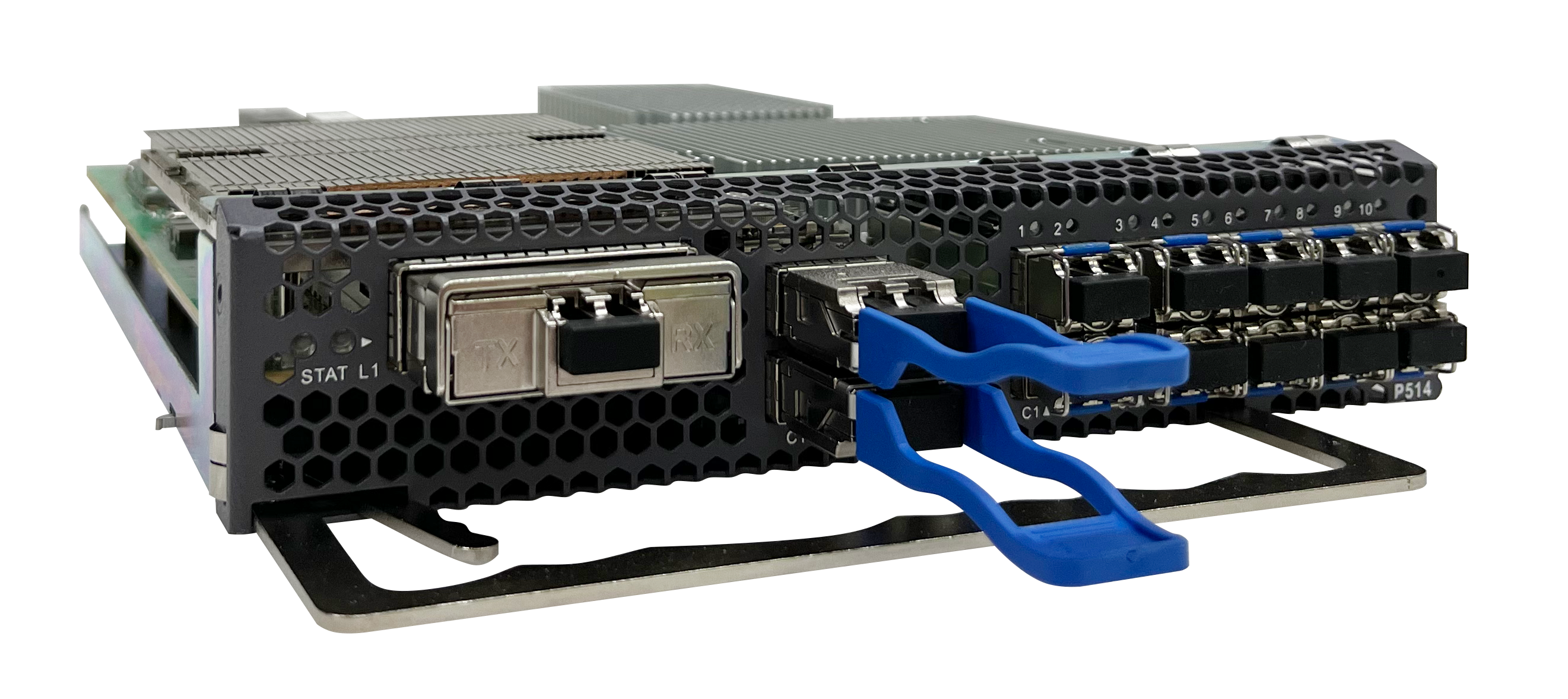

Line-side port

Rate

l 200G (PDM_QPSK)

l 200G (PDM_8QAM)

l 200G (PDM_16QAM)

l 400G (PDM_16QAM)

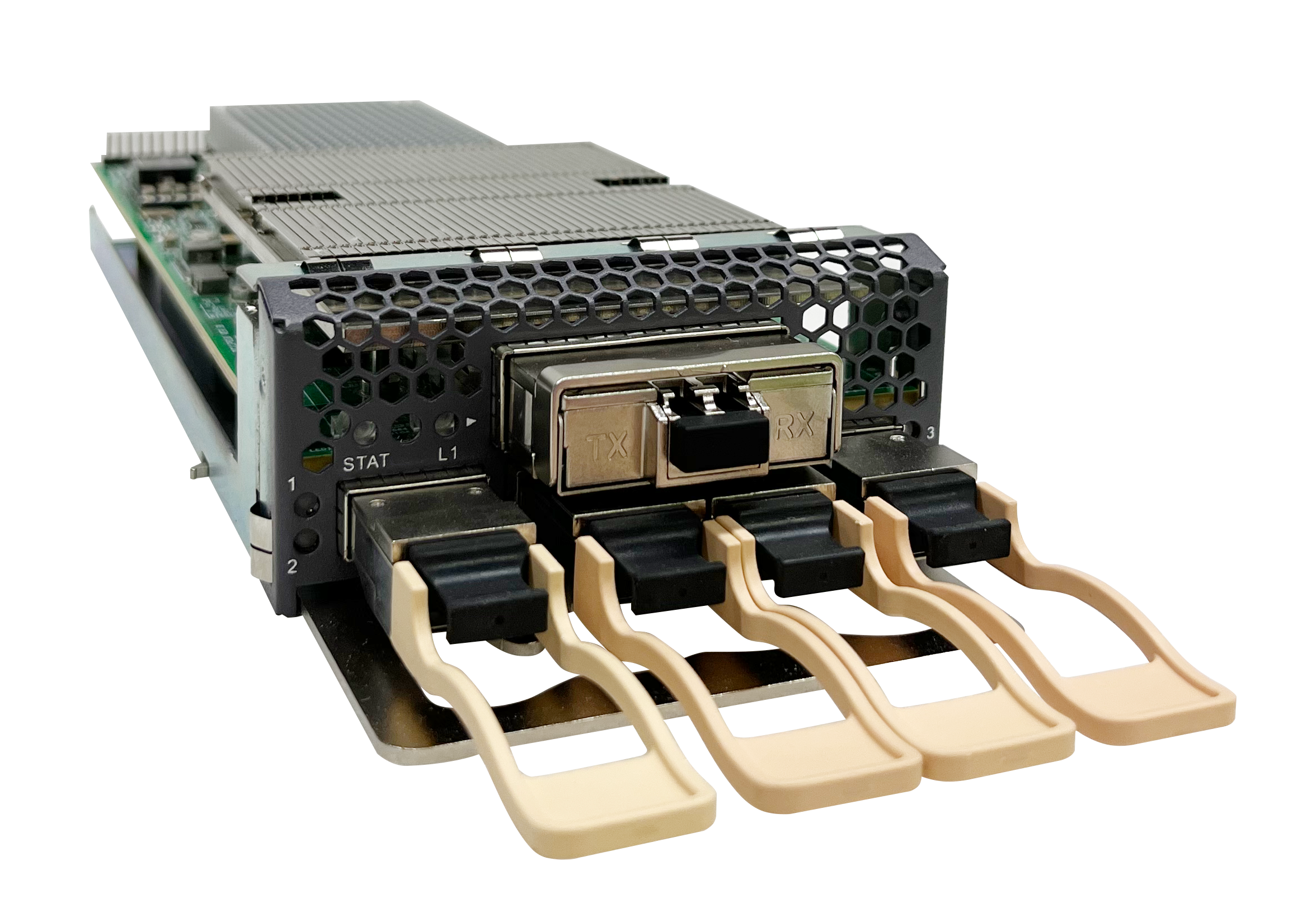

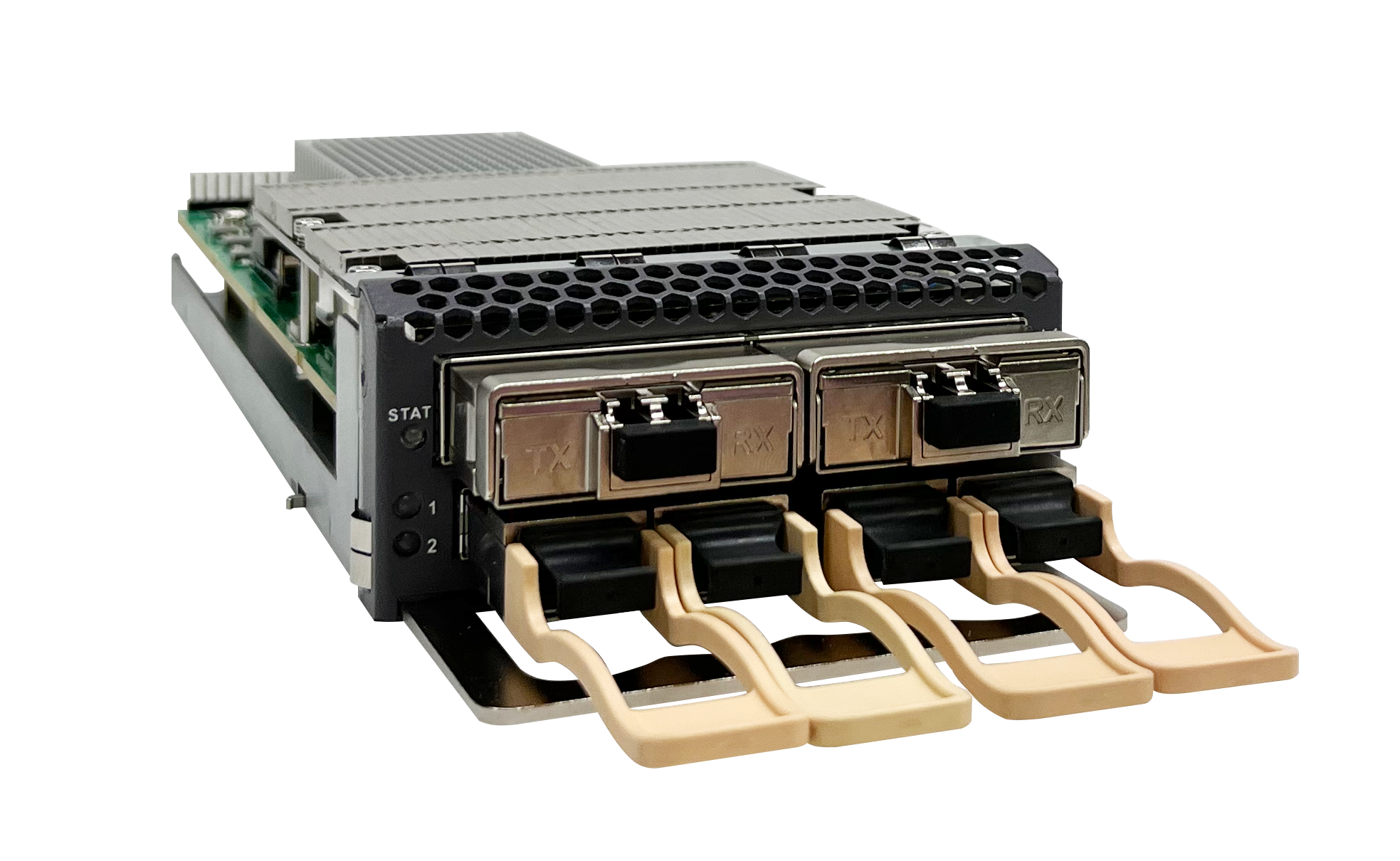

Optical module

Pluggable CFP2, wavelength adjustable

Client-side port

Service type

10GE, 100GE, 100GE FlexE(Unware), OTU2, OTU4, STM-64, 10GE WAN


Optical module

l Pluggable SFP+

l  Pluggable QSFP28

Max. number of wavelengths

Fixed grid: 96 wavelengths @50 GHz

Channel spacing

Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz

Central frequency range

191.35 GHz ~ 196.1 GHz

Central wavelength range

1528.77 nm ~ 1566.73 nm

Protection function

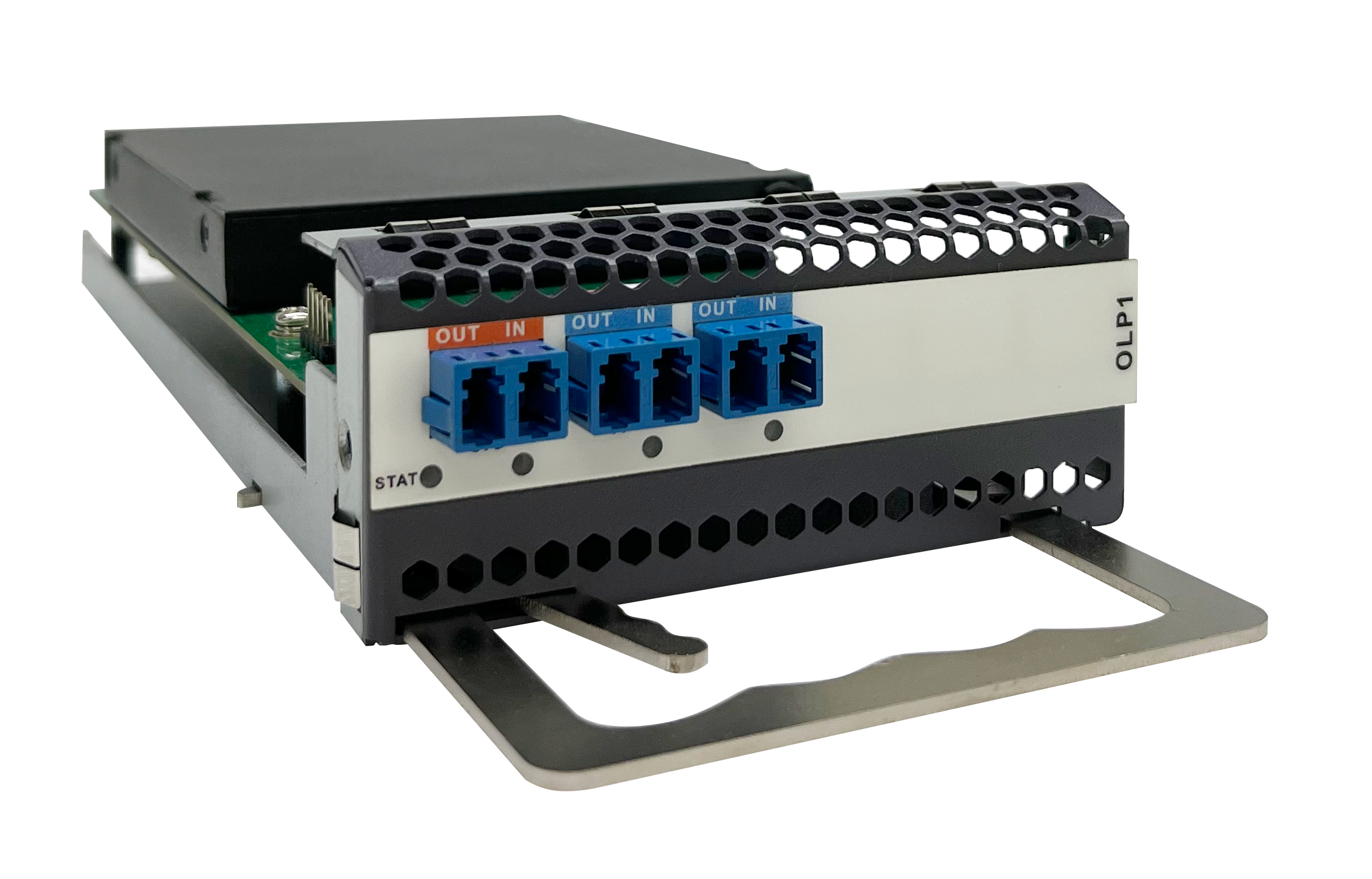

l Optical line protection (OLP)

l Optical multiplexed segment protection (OMSP)

l Optical channel protection (OCHP)

Network management

l Supports main controller 1+1 backup

l Supports CLI, NETCONF and B/S based GUI management platform

l Support OSC based DCN communication

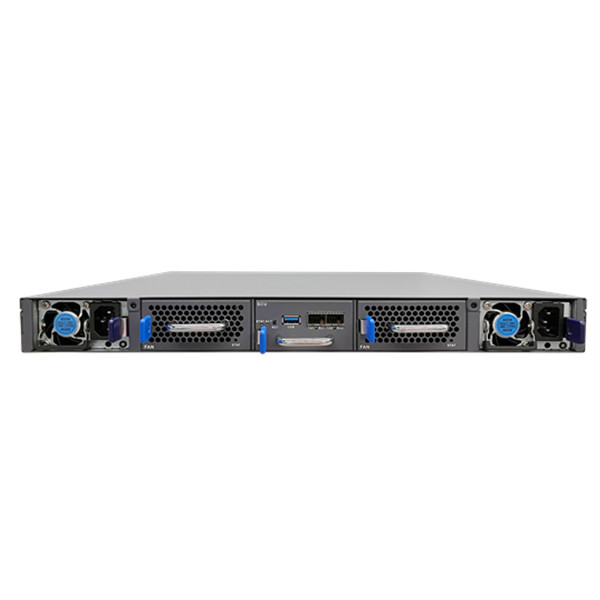

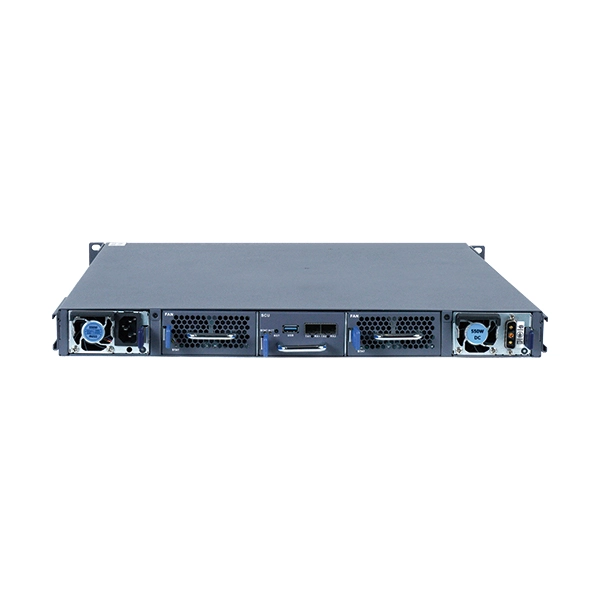

Power supply

Back-up

Standard CRPS power supply 1+1 backup


AC

l Rated voltage range:

– 100 V AC~130 V AC (50/60Hz)

– 200 V AC~240 V AC (50/60Hz)

l Max. voltage range: 90 V AC~264 V AC (45Hz~65Hz)


HVDC

l Rated voltage range: 240 V HVDC

l Max. voltage range: 192 V HVDC~288 V HVDC


DC

l Rated voltage range: -48 V DC/-60 V DC

l Max. voltage range: -40 V DC~-72 V DC

Heat dissipation

l Front inlet air and rear outlet air

l 1+1 Fan units backup

Typical power consumption

<550W (Electric layer full match)

Environment

Operating temperature

l Short-term: -5℃~+45℃

l Long-term: 0℃~40℃


Storage temperature

-40℃~+70℃


Humidity

5%~95% (no condensation)
