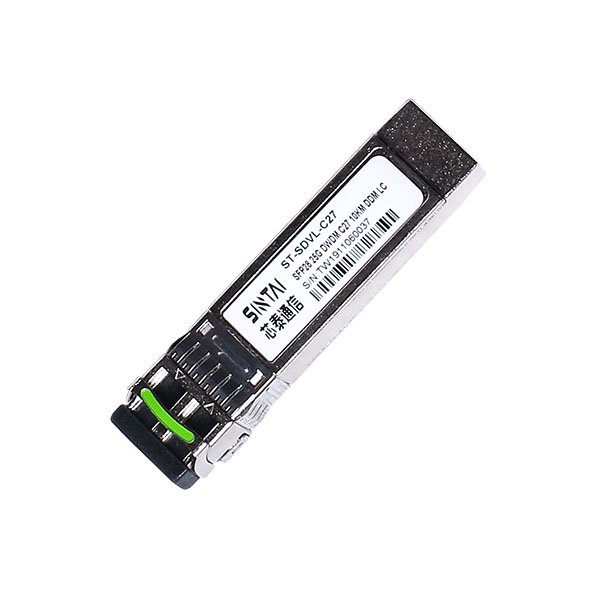

25G SFP28 Single Mode Transceiver

25G SFP28 Single Mode Transceiver

  • 25G SFP28 Single Mode Transceiver

Designed for 25G Ethernet 25GBASE-LR and CPRI/eCPRI links over duplex single-mode fibers, the 25G SFP28 LR industrial optical module supports transmission distance up to 10km using 1310nm wavelength.

25G SFP28 Single Mode Transceiver PDF Download Contact Us

25G SFP28 Single Mode Transceiver Feature

  • Hot-pluggable SFP28 form factor

  • Compliant with SFP MSA standard

  • Compliant with IEEE 802.3cc 25GBASE-LR standard

  • Compliant with CPRI and eCPRI specifications

  • Single-channel full-duplex transceiver module

  • Supports 25Gb/s data rate

  • 1310nm DFB laser

  • PIN photo-detector

  • 1W maximum power dissipation

  • Maximum link length of 10km on SMF

  • Dual LC receptacles

  • Built-in digital diagnostic functions

  • Industrial operating case temperature range: -40 to 85°C

  • Single 3.3V power supply

  • RoHS-6 compliant (lead-free)


25G SFP28 Single Mode Transceiver Specification

Package

Part Number

Data Rate

Reach

(km)

Wavelength

(nm)

TX output

(dBm)

RX sensitivity

(dBm)

RX overload

(dBm)

Interface

SFP28 LR

ST-SSVL-31

25G

10

1310

-5 ~2

-11.3

2

LC
