48X10G→480G System

48X10G→480G System

10G Integrated DWDM System

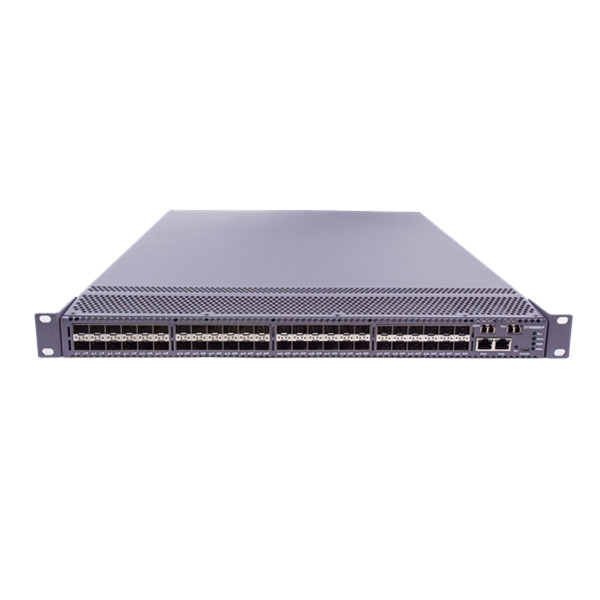

  • 10g intergrated dwdm system 1

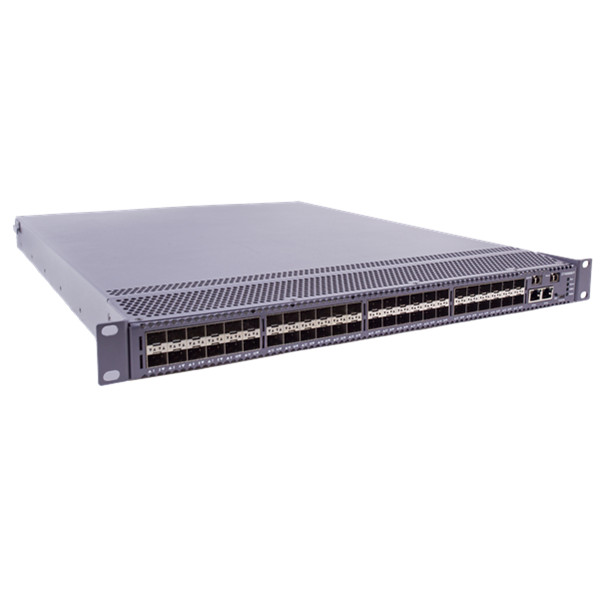

  • 10g intergrated dwdm system 2

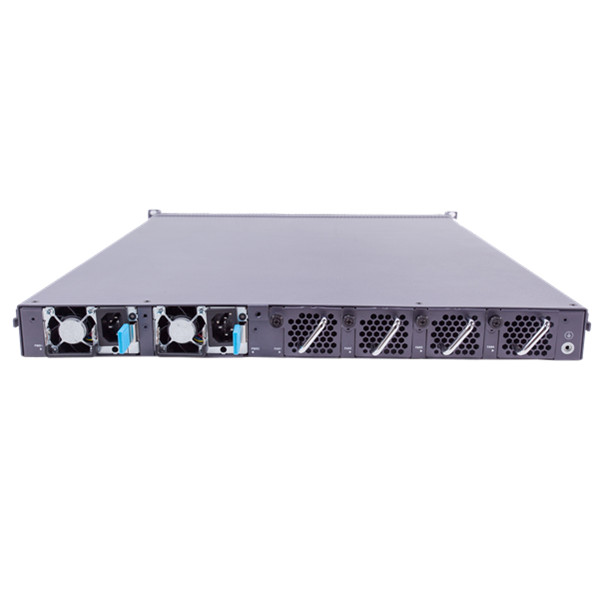

  • 10g intergrated dwdm system 3
  • 10g intergrated dwdm system 1
  • 10g intergrated dwdm system 2
  • 10g intergrated dwdm system 3

Based on optical integration technology, Sintai Communication Co., Ltd independently developed OTNS8600 P-type integrated wavelength division equipment, 80G, 160G, 400G, 480G transmission capacity to build networks in batches, eliminating complex optical layer configuration, reducing the tedious Connected to the optical fiber, the switch-type connection is connected, the network is built quickly, and the maintenance is simple.


It perfectly matches the transmission requirements of the customer's metropolitan area and solves the customer's demands to the greatest extent.

48X10G→480G System PDF Download Contact Us

10G Intergrated DWDM System Features

  • 1U rack device, ultra-high integration design, compared to traditional solutions, the cabinet space-saving 90%.

  • Single-channel access rate up to 10 Gbit/s and adaptive access to all types of services at rates of 10 Gbit/s or lower. (like FE/GE/10GE LAN, 10GE WAN, STM-1~64, etc.)

  • Support 1+1 line protection on the optical cable side, automatically select transmission routes, and improve network reliability.

  • In-band monitoring channel, optical path connectivity enables SNMP management across the connection of optical road.

  • Dual-server power configuration, hot-pluggable, 1+1 hot backup using Load Share.

  • One-box delivery by site, power-free distribution, plug and play; no fiber jump, no manual intervention.

  • The single device supports up to 480G transmission capacity, 80G/160G/400G/480G devices can be flexibly selected according to service requirements, and stacking is supported to increase the transmission capacity.

  • The networking is simple, the original network topology is not changed, no complicated optical layer design, and only the device model is selected based on the number of attenuation or kilometers.

  • The service port is completely physically isolated and transparently transmitted to improve network security.


10G Intergrated DWDM System Specification

Function

Note

Equipment Size

1U: 44 mm (H)×442 mm (W)×560 mm (D)

Max channel number

480G

Single-channel max rate

10Gbit/s

Support service

100M~10G All services, including STM-1/4/16/64, OC-3/12/48/192, FE, GE, 10GE, FC100/200/400/800/1200, FICON, ESCON, CPRI 1/2/3/6/7, and other services

Clock features

Support IEEE 1588V2

Network-level protection

Support optical line 1+1 protection

Installation

19" 600mm cabinet

Working temperature range

-10℃~60℃ (typical)

Working humidity range

5~95% no condensation

Storage temperature range

-40℃~85℃

Heat dissipation

Fan cooling

Power supply mode

AC: 90 ~ 260V or DC: -36 ~ -72 V (support 1+1 backup power input)

Power consumption

<400W (Max)

MTBF

>100000 hours
