4x100G→2X200G Muxponder

4x100G→2X200G Muxponder

  • 4x100g2x200g muxponder

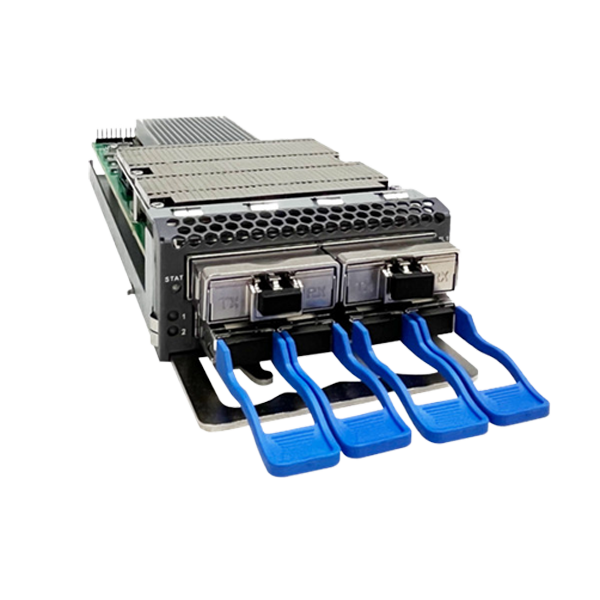

The 200G Muxponder service card (P524) launched by Sintai Communication supports mapping 4x100G optical signals received on the client side into 2 OTUC2 signals and interconverting OTUC2 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2 DCO to achieve ultra-long distance transmission based on advanced technologies such as coherent detection.


4x100G→2X200G Muxponder PDF Download Contact Us

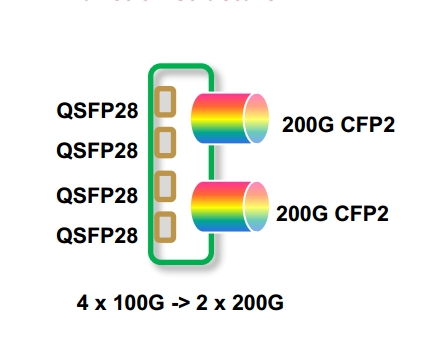

Function Structure



Application

  • Suitable for transmission over metropolitan networks and long-distance networks up to 1000 km

  • Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.

  • Suitable for 200G links in existing OTN/DWDM infrastructures


Product Specification

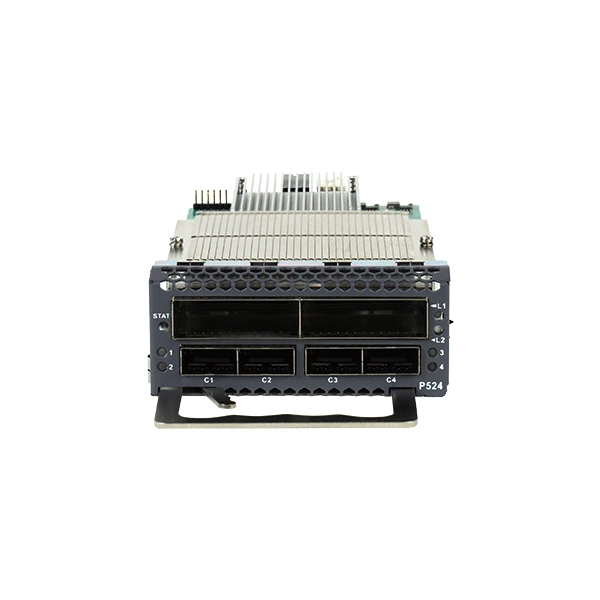

200G Muxponder (P524)

Function

Support 4x100G service signals mapping to 2 OTUC2 signals

Slot number

1/4 slot

Line side

Supports 2 CFP2-DCO modules hot-pluggable

Client side

Support 4 QSFP28 modules hot-pluggable

OTN function

● Frame format and overhead handling using ITU-T G709 recommendations

● ODUk (k=4, C2) layer: support for PM and other functions.

● OTUk (k=C2) layer: support for SM functions

Wavelength adjustable

Range covers 191.35 THz ~ 196.1THz

Support 50 GHz, 75 GHz, 100 GHz adjustable

Support services

100GE, 100GE FlexE(Unware), OTU4

Time delay measurement

Online delay measurement based on ODU layer

Loopback

Support line side and client side loopbacks

LLDP

Ethernet Support

Performance monitoring and alarm monitoring

Support OTN performance monitoring and alarm monitoring functions

Support optical module temperature, current, optical power monitoring, etc.

Support Ethernet RMON monitoring

Support Telemetry
