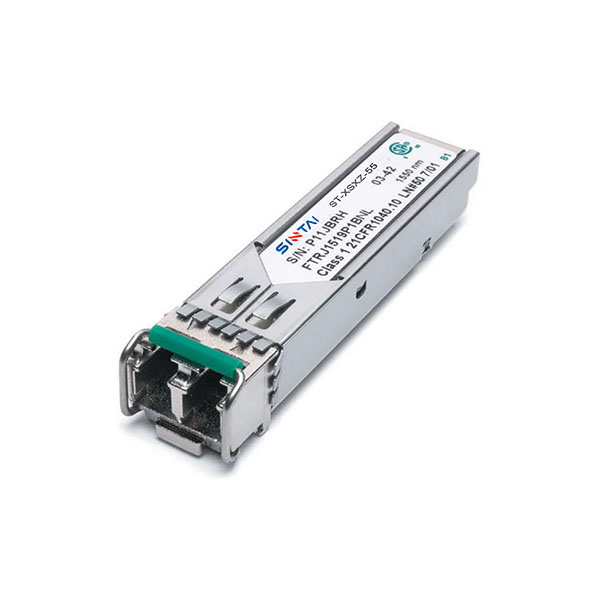

SFP DWDM Transceiver

SFP DWDM Transceiver

  • SFP DWDM Transceiver

Designed for Ethernet, Fiber Channel, SDH, SONET, or CPRI links over duplex single-mode fibers, the Sintai DWDM SFP optical transceivers use DWDM C-band C15-C62 wavelengths with 100GHz spacing and support transmission distance up to 120km.

SFP DWDM Transceiver PDF Download Contact Us

SFP DWDM Transceiver Feature

  • Adopt SFP hot-swappable encapsulation with LC interface.

  • Support the rate of 1.25 or 2.67Gb/s with downward compatibility.

  • Support specification of DWDM.

  • Suitable for networks such as Ethernet/ FC/ SDH/ SONET/ CPRI.

  • Single-mode optical fiber supports a transmission distance of up to 120km in the DWDM system.

  • Built-in DDM (digital diagnostic monitoring function).

  • Working temperature: 0°C ~ +70°C.

  • Comply with RoHS standards.


SFP DWDM Transceiver Overview

The 1.25G SFP optical communication module launched by Sintai Communication Co., Ltd contains a wide range of products to support a variety of application scenes, including dual fiber bidirectional, single fiber bidirectional, CWDM, DWDM transmission.


The module conforms to the MSA protocol, and it has the characteristics of low power consumption, small size, multi-rate and good compatibility with different network applications, such as Ethernet/ SDH/ SONET/ CPRI/ FC, with the longest transmission distance of 120 km. The transceiver conforms to the RoHS standard and supports the digital diagnostic function.


The DWDM optical transceiver is used in the DWDM system which adopts the dense wavelength division multiplexing technology to achieve long-distance and huge capacity transmission.


SFP DWDM Transceiver Specification

Model

Description

Transmission distance

Working

wavelength

Transmitting power

Receiving sensitivity

Overload power

(km)

(nm)

(dBm)

(dBm)

(dBm)

ST-SDGZ-CXX

SFP, DWDM, 1.25G

80

DWDM

(C15~C62)

0~5

≤-24

-1

ST-SDGU-CXX

SFP, DWDM, 1.25G

120

DWDM

(C15~C62)

0~5

≤-31

-9

ST-SDSZ-CXX

SFP, DWDM, 2.5G

80

DWDM

(C15~C62)

0~5

≤-28

-10

ST-SDSU-CXX

SFP, DWDM, 2.5G

120

DWDM

(C15~C62)

0~5

≤-30

-10
