16 Channels Double Fiber Passive 100 GHz DWDM Mux/Demux is a member of sintai Optics DWDM Series product line. We designed Sintai Optics DWDM Series products to allow easy, gradual, logical, and cost-efficient expansion of network bandwidth using industry-leading passive WDM technology.


The main advantage of DWDM is its passive nature – no power supply or cooling necessary, robustness-no special micro-climate requirements and as a passive element, it has MTBF 100+ Years. DWDM is – it is fully data rate or line protocol neutral – it is possible to use with colored transceivers supporting such applications as 1G/10G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel. Its simple to install requires no configuration or maintenance.


DWDM is a passive multiplexer/demultiplexer package based on TFF (Thin-Film Filter) technology, allowing to organize 16 duplexes, protocol-independent parallel ITU-T G.694.1 compatible Dense Wavelength Division Multiplex (DWDM) data streams over pair of single-mode optical fiber.


DWDM-16 supports 16 100GHz channels and it can be used as standalone, or together with DWDM-16 by plugging it into the Upgrade port and expanding link capacity up to 32 channels. DWDM-16 is manufactured as a standard 1U high 19" sub-rack fitting any standard equipment rack.


16CH DWDM Mux Demux PDF Download Contact Us

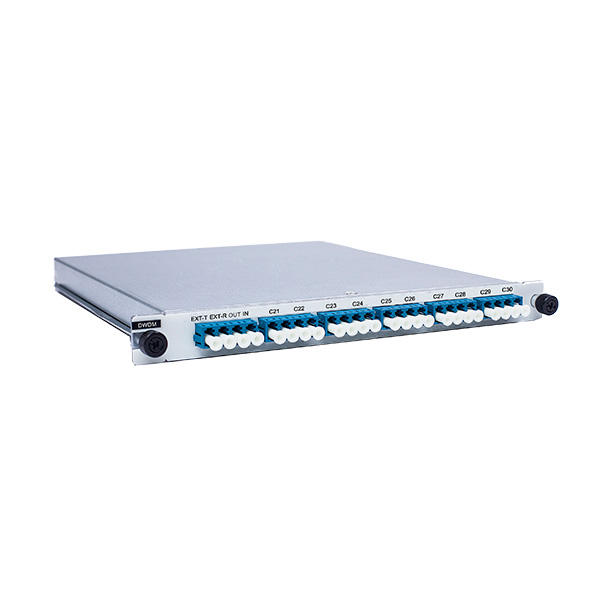

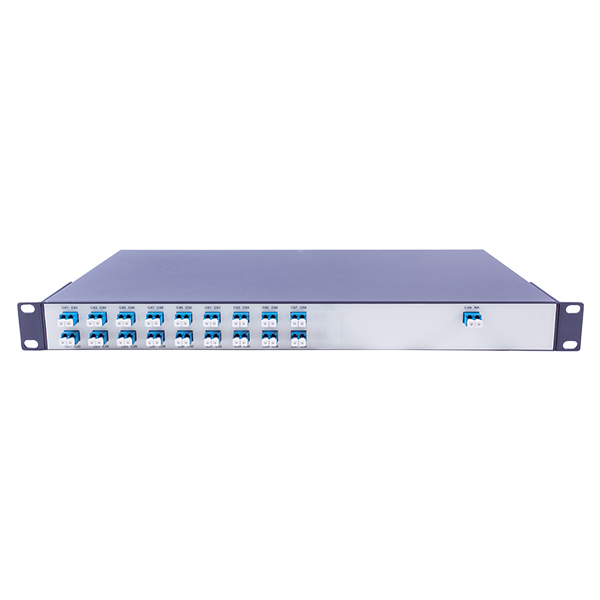

16CH DWDM Mux Demux Features

  • 16channel 100 GHz DWDM Ch. Over double SMF

  • Fully Passive: No Power Supply or Cooling

  • Protocol & Data Rate neutral

  • MTBF: 100+ Years

  • Low Insertion Loss -3.2 dB

  • Compact: 1U Standard 19" Rack

  • Easy Installation

  • 5 Year Warranty


16CH DWDM Mux Demux Specification

Item

DWDM MUX/DEMUX

Channel number

1

2

4

8

16

Operating wavelength (nm)

1525~1565

Center wavelength (nm)

ITU-T Grid

Channel spacing (nm)

0.8nm(100GHz)

Channel insertion loss (dB)

≤0.8

≤1.2

≤1.8

≤2.6

≤4.5

Channel bandwidth (dB)

ITU±0.11

Flatness (dB)

≤0.5

Adjacent channel isolation (dB)

≥30

Non-adjacent channel isolation (dB)

≥40

Return loss (dB)

≥50

Directivity (dB)

≥55

Polarization-dependent loss (dB)

≤0.2

Polarization mode dispersion (ps)

≤0.2

Power Handling (dB)

≤500

Operating Temperature (°C)

0~+70

Storage Temperature (°C)

-40 ~+85

Package type

Steel tube, ABS box, LGX standard box, 1U standard 19-inch rack
