100G Transponder

100G Transponder

6 Channels 40G&100G Transponder

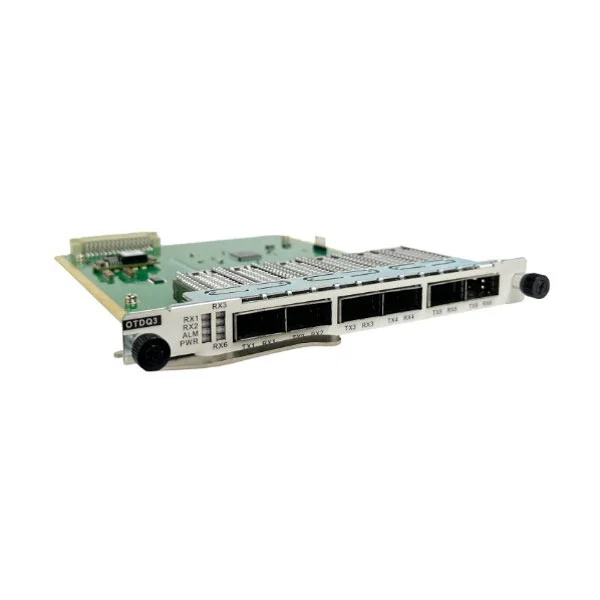

  • 6 channels 40g100g transponder 1

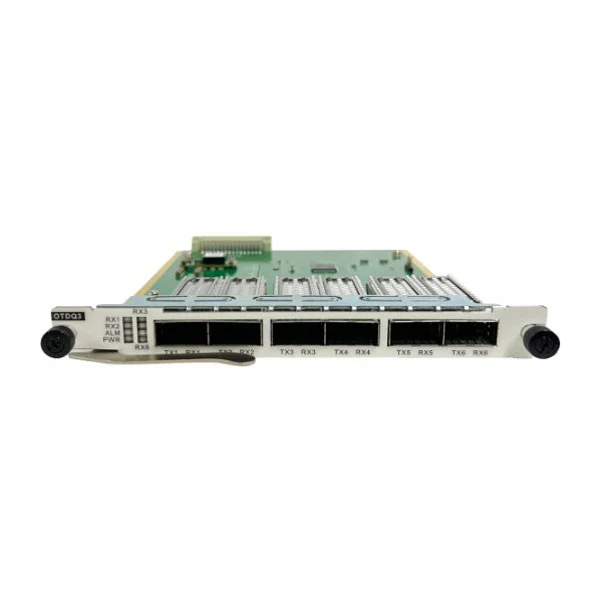

  • 6 channels 40g100g transponder 2
  • 6 channels 40g100g transponder 1
  • 6 channels 40g100g transponder 2

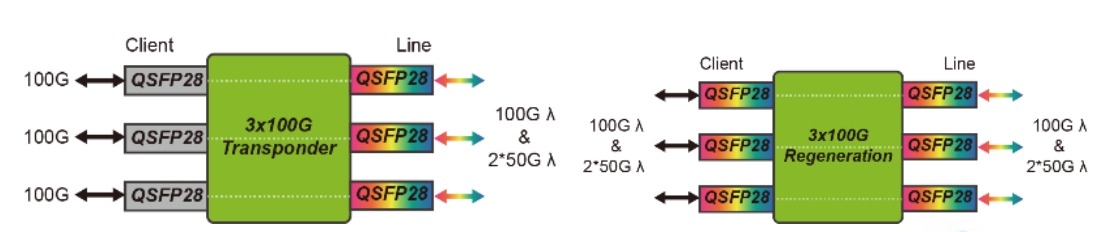

The 100G OTU Service Board launched by Sintai Communication supports three 100G service accesses and converts them into three 100G-rate or six 50G-rate WDM-standard wavelength optical signals, so as to facilitate WDM multiplexing of different wavelengths of optical signals by combining units, and at the same time, realise the inverse process of the above mentioned process. It is suitable for intra-city WDM short-haul transmission solutions.


100G Transponder PDF Download Contact Us

Products
Blog

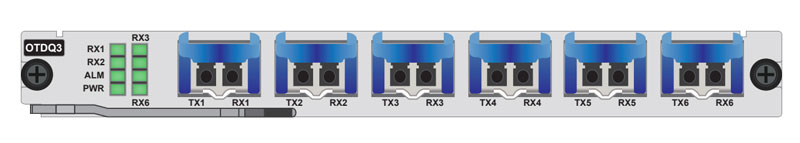

6 Channes 40G&100G Transponder Diagram

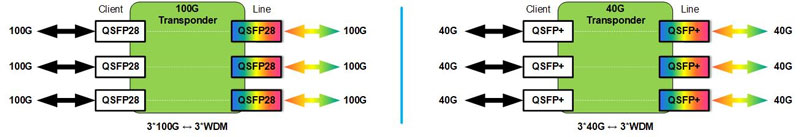

6 Channes 40G&100G Transponder Functional Structure


6 Channes 40G&100G Transponder Specification

Parameter

Description

Product model

OTDQ3

Wiring pattern

Support 3 *100G service wavelength conversion

Relay mode

Support 3*100G service 3R relay regeneration

Connector

  • 6, QSFP28-based pluggable

  • Line-side support for 100G QSFP28 DCO optical modules and 100G QSFP28 PAM4 DWDM optical modules

  • Line-side support for wavelength tunability covering 191.35~196.1 THz (100G QSFP28 DCO support)

Supported service types

  • 100GE, 100GE_RS-FEC

  • OTU4 (100G QSFP28 DCO support)

Loopback

Supported when using 100G QSFP28 DCOs

ALS

Support automatic switching off and on of the laser according to the optical signal input

Performance monitoring

  • Support performance monitoring of optical SNR, pre-correction BER, uncorrectable BER blocks, etc. (supported by 100G QSFP28 DCO)

  • Support performance monitoring such as pre-correction BER and post-correction BER (100G QSFP28 PAM4 DWDM support)

  • Support optical module temperature, current, voltage, optical power and other performance monitoring

Number of slots occupied

Support all OTNS8600 series chassis, occupies 1 slot

Maximum power consumption

  • 60W (line mode: using 100G QSFP28 DCO)

  • 30W (line mode: using 100G QSFP28 PAM4 DWDM)
