18CH CWDM Mux Demux

18CH CWDM Mux Demux

  • 18CH CWDM Mux Demux

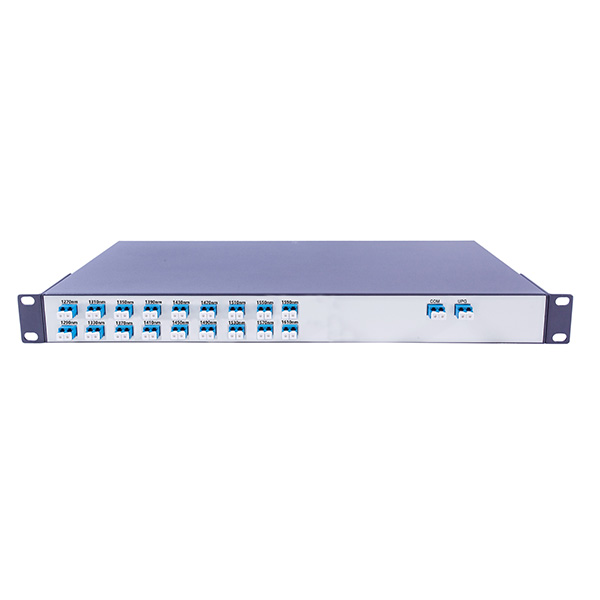

The CWDM multiplexer/demultiplexer launched by Guangzhou Sintai Communications Co., Ltd. is designed for economical and efficient multi-wavelength CWDM network applications. It is based on thin-film filter (TFF) technology and operates on ITU grids with 20nm channel spacing.


The CWDM wavelength ranges from 1270 to 1610 nm and supports at most 18 channels of optical signal multiplexing/demultiplexing. It has a series of advantages, such as multi-kind of packaging structures, low insertion loss, high channel isolation, and so on.

18CH CWDM Mux Demux PDF Download Contact Us

18CH CWDM Mux Demux Feature

  • Low insertion loss (IL)

  • High channel isolation

  • High stability and reliability

  • Provide 1 to 18 channels with a compact design

  • Conform to ITU-T G.694.2

  • Conform to Telcordia GR-1209-CORE-2001 standard

  • Conform to Telcordia GR-1221-CORE-1999 standard

  • Conform to RoHS-6 (no lead)

  • Application Area

  • CWDM system

  • CATV system


18CH CWDM Mux Demux Applications

  • Maximizes fiber in local loop applications

  • Overlays CWDM with existing1310 nm transmission systems

  • Provides bidirectional transmission on a single fiber

  • Supports linear (bus) add/drop architectures

  • Supports hub-and-spoke ring architectures


18CH CWDM Mux Demux Compliance

  • ITU-T G.694.2 and G.695

  • GR-1221 Issue 3 and 1209

  • RoHS compliant 6/6


18CH CWDM Mux Demux Specification

Item

CWDM MUX/DEMUX

Channel number

1

2

4

8

16

18

Operating wavelength (nm)

1260~1620

Center wavelength (nm)

ITU-T Grid

Channel spacing (nm)

20

Channel insertion loss (dB)

≤0.8

≤1.2

≤1.8

≤2.6

≤4.5

≤5.0

Channel bandwidth (dB)

ITU±6.5

Flatness (dB)

≤0.5

Adjacent channel isolation (dB)

≥30

Non-adjacent channel isolation (dB)

≥40

Return loss (dB)

≥50

Directivity (dB)

≥55

Polarization-dependent loss (dB)

≤0.2

Polarization mode dispersion (ps)

≤0.2

Power Handling (dB)

≤500

Operating Temperature (°C)

0~+70

Storage Temperature (°C)

-40 ~+85

Package type

Steel tube, ABS box, LGX standard box, 1U standard 19-inch rack
