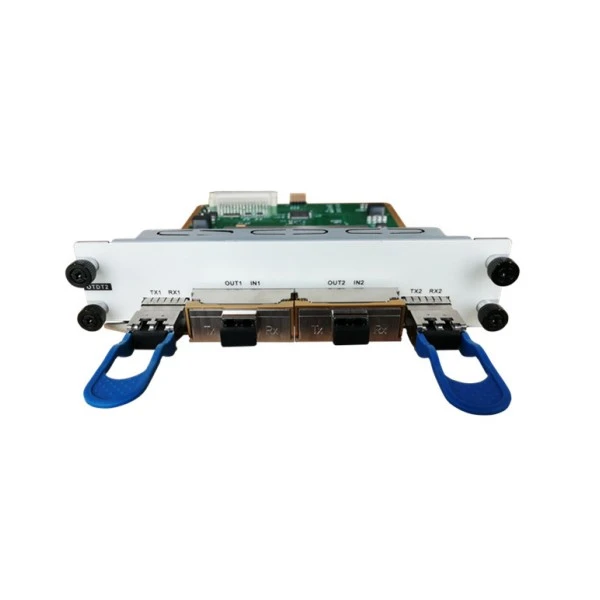

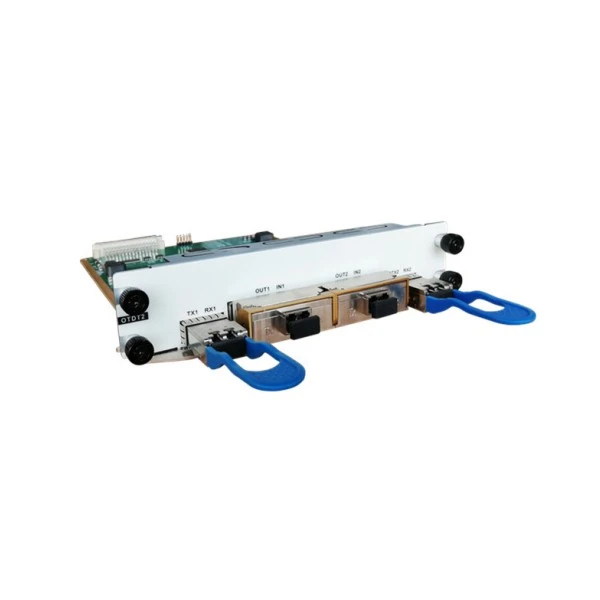

The 2x100G Transponder service access board from Sintai Communication supports 2x100G↔2x100G electrical layer multiplexing/demultiplexing and converts to 2x100G rate WDM standard wavelength optical signal, adopts advanced technologies such as PDM-QPSK modulation and 100G CFP2 coherent reception, and overcomes the OSNR requirements, CD tolerance, and PMD tolerance of high-speed transmission systems. And the nonlinear physical effects of transmission, such as 100G service 1200 km or more of non-electrical relay transmission, and the line-side interface supports C-band 96-wave (50 GHz) adjustable.

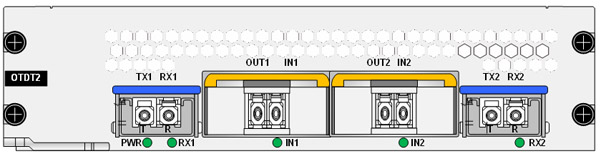

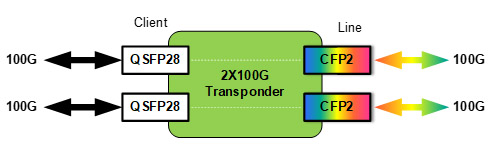

Client-side interface: 2, based on QSFP28 pluggable
Line-side interface: 2, based on CFP2-DCO pluggable, coherent PDM-QPSK
Support 2*100G service optical signal multiplexed into 2*100G rate DWDM standard wavelength optical signal
Support 100G wavelength electric relay
Support service type
100GE, 100GE_FEC, OTU4
Support DWDM: C-band 50GHz 96-wave tunable
Number of occupied slots
Support OTNS8600 full series chassis, occupy 2 slots
Network management function
Support real-time monitoring of port working status, including: transmitting optical power, receiving optical power, temperature, etc.
Support port loopback function
Maximum power consumption
65W (including optical module)
