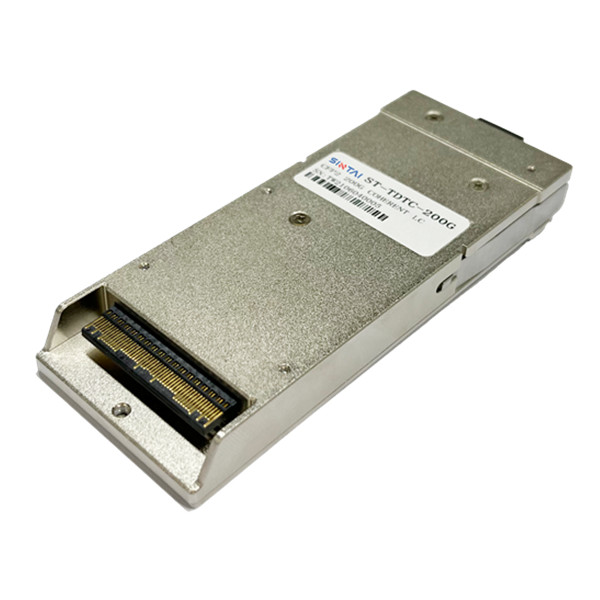

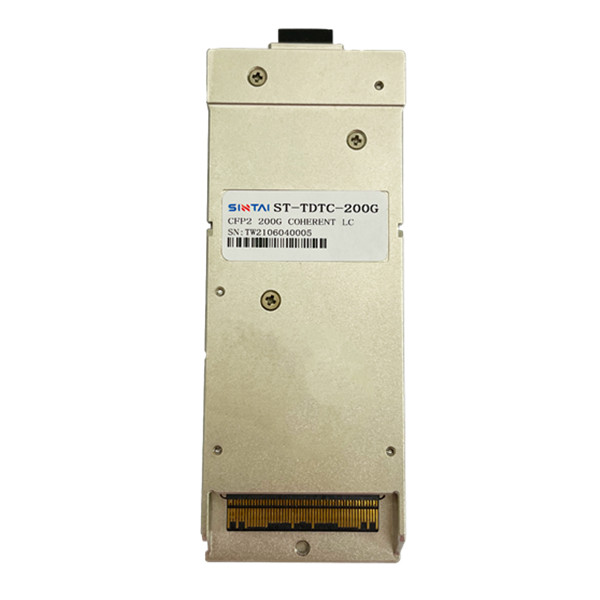

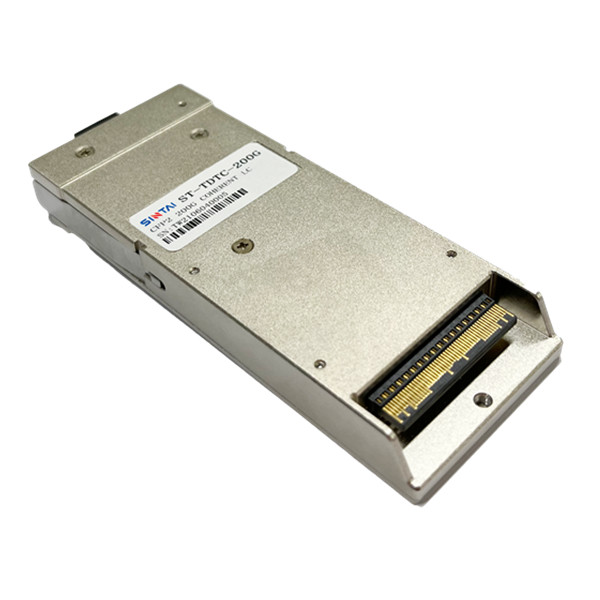

The 100G/200G CFP2-DCO coherent pluggable optical module launched by Sintai Communication is based on DP-QPSK or DP-8QAM / DP-16QAM design, and supports C-Band full-band tunable (50/100GHz interval). It supports single-wavelength DWDM transmission of 100G/200Gbps and above, and is suitable for data center 100G/200G Ethernet and OTN OTU4 metropolitan optical transport network links.
Three modulation modes: DP-DQPSK, DP-8QAM / DP-16QAM
Full C-band 50GHz ITU-T transmitter
Built-in client side and line OTN processing
OTU4 and 100GE compatible
OTL4.4 and CAUI compatible
Optimized DSP Algorithms
Up to 1200km transmission distance

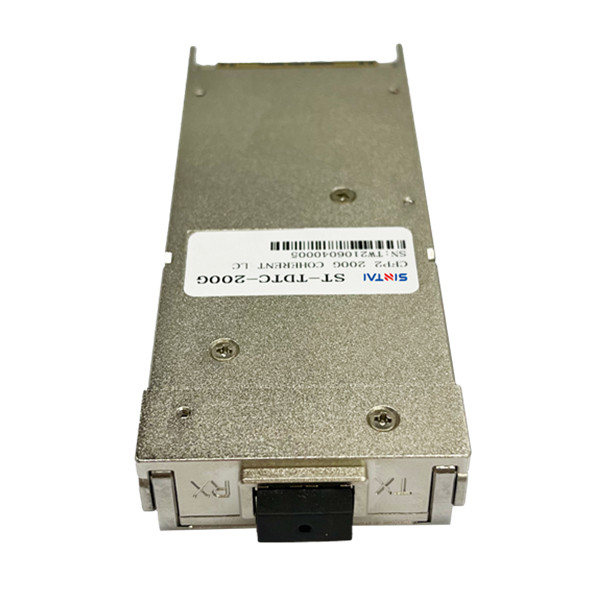

Dual LC optical interface
Power supply voltage: 3.3V
Operating temperature: 0°C to +70°C
Ultra-low power consumption: 21W
RoHS-6 Compliant (Pb-Free)
Compliant with CFP2 MSA standard
Hot-plug electrical package interface
Low latency GFEC/SD-FEC
Parameter | Min. | Max. | Unit | |
Operating frequency range | 191.25 | 196.1 | THz | |
Transmit frequency stability | -1.8 | 1.8 | GHz | |
Transmit optical power range | -15 | 1 | dBm | |
Received optical power range | -18 | 0 | dBm | |
OSNR sensitivity | 100G QPSK | 12.5 | 13.5 | dB/0.1nm |
200G 8QAM | 18 | 20 | ||
200G 16QAM | 20.5 | 22.5 | ||
Dispersion tolerance | 100G QPSK | 40000 | ps/nm | |
200G 8QAM | 20000 | |||
200G 16QAM | 16000 | |||
Polarization mode dispersion tolerance | 100G | 30 | ps | |
200G | 15 | |||
Cold start time | 50 | 90 | s | |
Transmit wavelength switching time | 60 | s | ||
