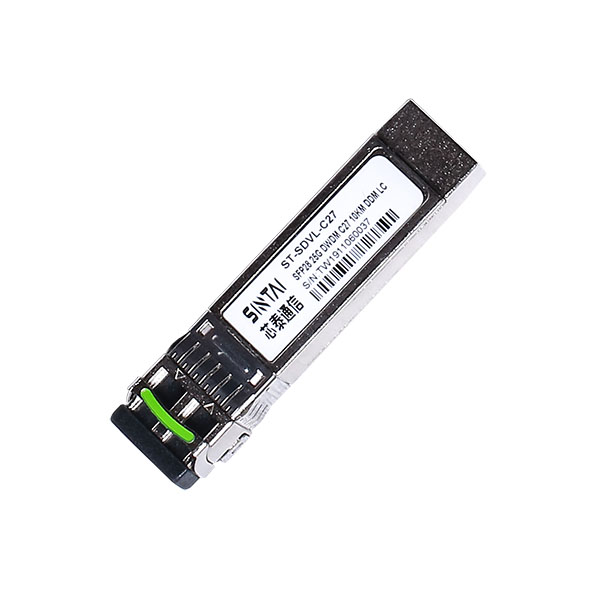

25G SFP28 DWDM Transceiver

25G SFP28 DWDM Transceiver

  • 25G SFP28 DWDM Transceiver

The laser-based 25Gigabit SFP28 Transceiver is designed to transmit and receive serial optical data over single-mode optical fiber with 10Km.


They are compliant with SFF-8431, SFF-8432. The transmitter converts serial CML electrical data into serial optical data. The receiver converts serial optical data into serial CML electrical data. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.


25G SFP28 DWDM Transceiver PDF Download Contact Us

25G SFP28 DWDM Transceiver Feature

  • Compliant to SFP28 MSA

  • Fully RoHS Compliant

  • All-metal housing for superior EMI performance

  • Operating data rate up to 25.78Gbps

  • High sensitivity Pin photodiode and TIA

  • LC duplex connector

  • Hot-pluggable 20pin connector

  • Low power consumption<2 W

  • 0℃ to 70℃ operating wide temperature range

  • Single +3.3V±5% power supply

  • Digital Monitoring SFF-8472 Rev

  • 10.2 compliant


25G SFP28 DWDM Transceiver Application

  • 25G Ethernet

  • CPRI Option 10


25G SFP28 DWDM Transceiver Specification

Package

Part Number

Data Rate

Reach

(km)

Wavelength

(nm)

TX output

(dBm)

RX sensitivity

(dBm)

RX overload

(dBm)

Interface

SFP28 DWDM

ST-SDVL-XX

25G

10

DWDM (50G HZ)

0~4

-11.3

2

LC
