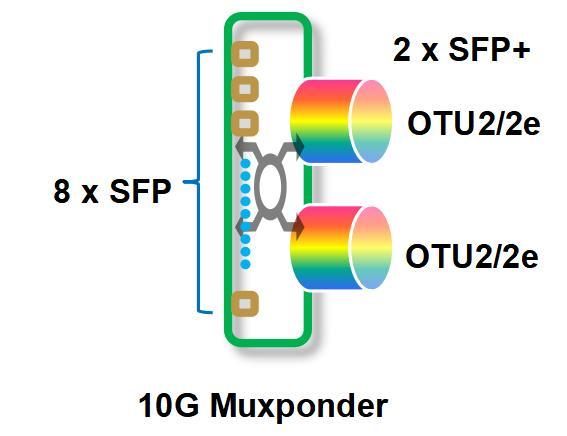

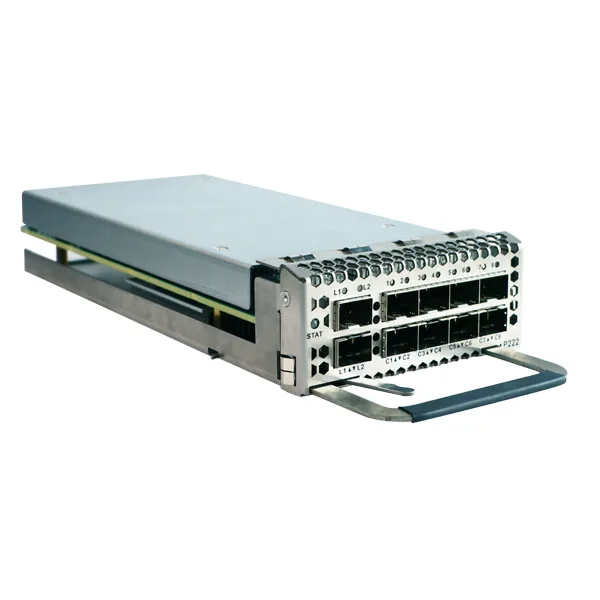

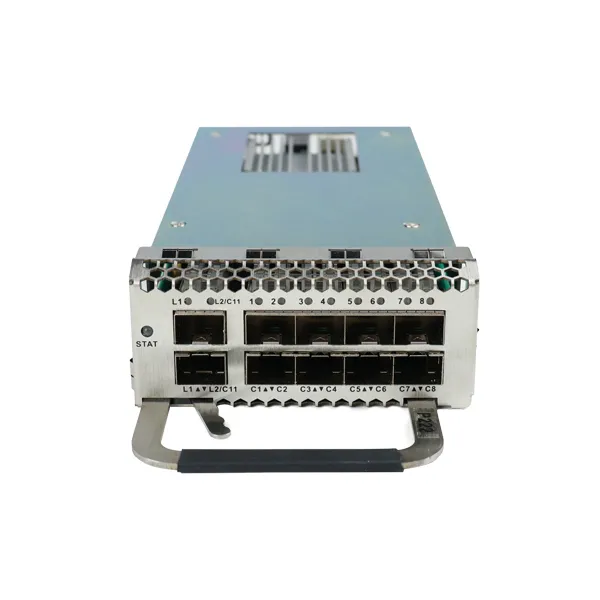

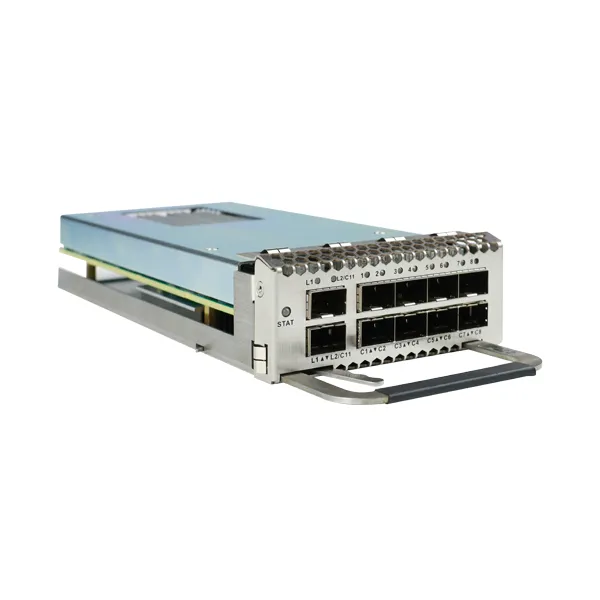

The 10G Muxponder service board(P222) launched by Sintai Communication is an enhanced 8-channel arbitrary rate service aggregation wavelength conversion board, which realizes the conversion of Any service (125Mbit/s~10.51Gbit/s)<->OTU2 (e), supports multiple working modes, and can provide intra-board 1+1 protection function.
PDF Download
Contact Us
Suitable for metropolitan area networks and long-distance network transmission up to 1000km
Suitable for small particle dedicated line service transmission in enterprises, parks, etc
10G links for existing OTN/DWDM infrastructure
10GMuxponder(P222) | |
Occupiedslot | 1 slot |
Line-side | Support 2 SFP+ modules hot-swappable |
Client-side | Support 8 SFP/SFP+ modules hot-swappable |
Supported service types | FE, GbE, 10GbE, STM-1, STM-4, STM-16, STM-64, FC100, FC200, FC800, FC1200, OTU1, OTU2, OTU2e |
Working mode |
|
Latency measurement | Support online delay measurement based on ODU layer on the line-side |
Loop back | Support inner loop and outer loop on line-side and client-side |
ALS | Client-side support (when the service type is not OTN) |
Intra-board 1+1 protection | Support (8*2.5G Any ↔ 1*OTU2 working mode) |
Alarm and performance monitoring |
|
Typical power consumption | ＜35W |
