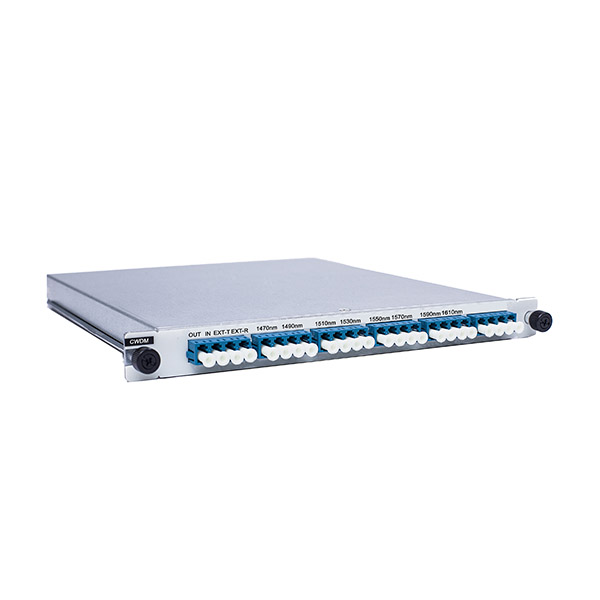

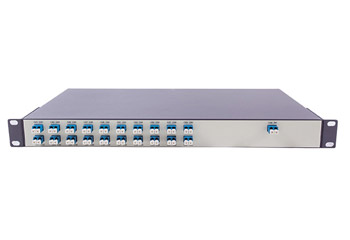

  • CWDM Add and Drop Mux Demux

The add-drop multiplexing passive wavelength division card launched by Sintai Communication Co., Ltd is generally used in the intermediate nodes of chain or ring-type network, which can selectively receive and transmit or upload and download some wavelength division channels from the transmission signal without affecting the transmission of other channels.


The single CWDM add-and-drop multiplexer card supports up to 8 channels' add-drop separately in two different directions.

CWDM Add and Drop Mux Demux PDF Download Contact Us

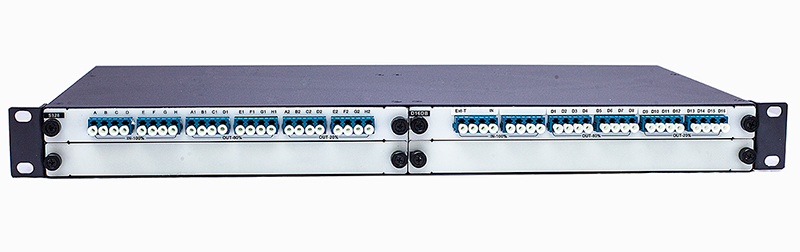

CWDM Add and Drop Mux Demux Diagram



CWDM Add and Drop Mux Demux Functional Structure



CWDM Add and Drop Mux Demux Specification

Number of channels

1

2

4

8

Occupied slot number

1

1

1

2

Wavelength range

CWDM: 1271nm to 1611nm

Insertion loss

< 1 dB

< 1.5 dB

< 2.5 dB

< 3.5 dB

Isolation ratio of adjacent channels

> 30 dB

> 30 dB

> 30 dB

> 30 dB

Isolation ratio of non-adjacent channels

> 40 dB

> 40 dB

> 40 dB

> 40 dB

Return loss

> 45 dB

> 45 dB

> 45 dB

> 45 dB

Direction

> 50 dB

> 50 dB

> 50 dB

> 50 dB

Interface type

All interfaces are LC type

Work temperature

-40~85℃

Storage temperature

-40~85℃
