100G CFP DWDM Transceiver

100G CFP DWDM Transceiver

  • 1
  • 2
  • 3
  • 4
  • 1
  • 2
  • 3
  • 4

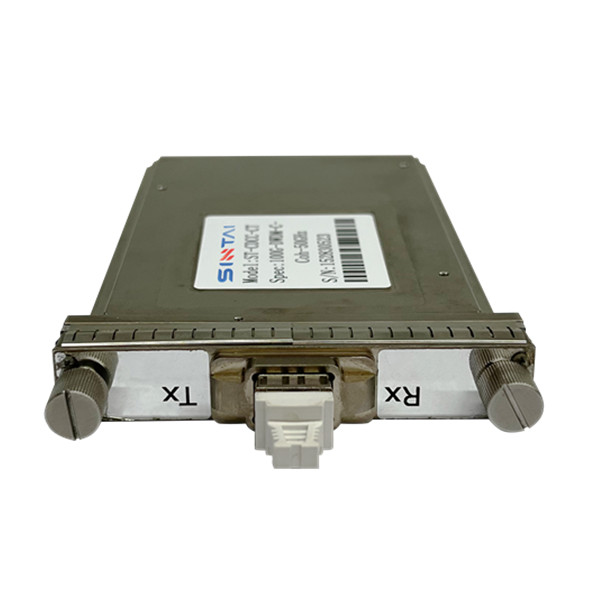

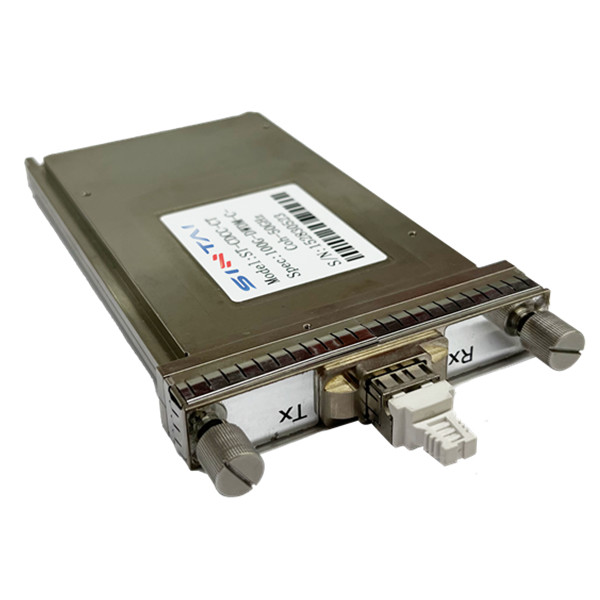

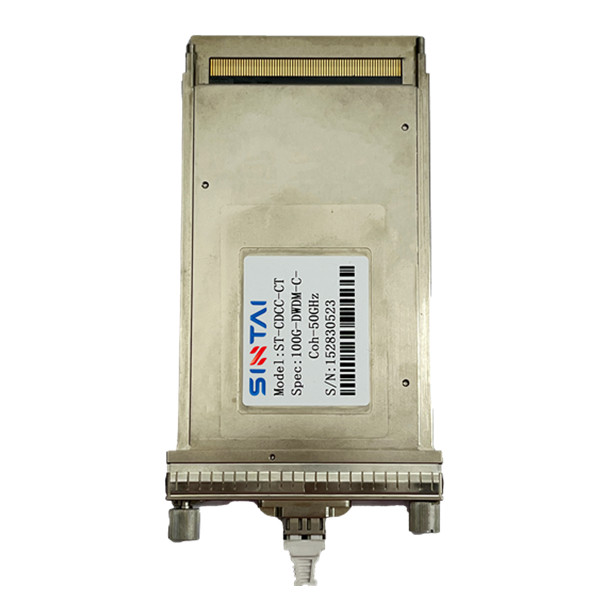

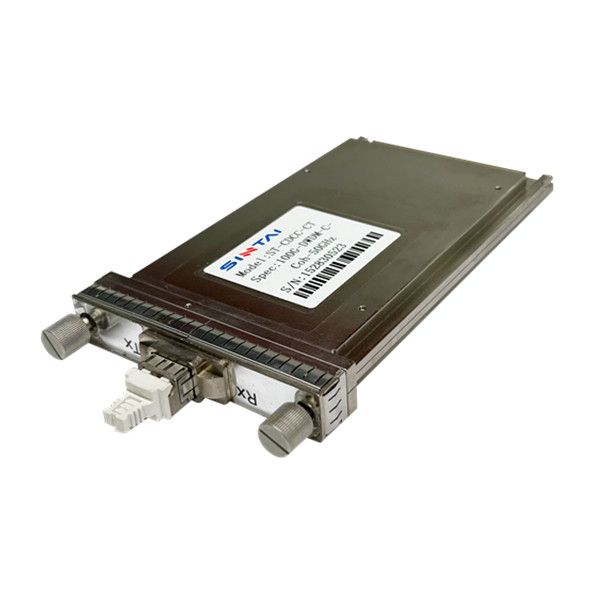

The 100G CFP-DCO coherent optical transceiver launched by Guangzhou Sintai Communication Co., Ltd. adopts a standard CFP package and advanced modulation mode based on DP-D/QPSK. It supports C-band full band adjustable (50/100GHz interval) and is compatible with 100GE interface and OTU-4 interface.


It aims to support single wavelength DWDM transmission of 100Gbps and above and is suitable for various applications from data center interconnection (DCI) to long-distance transmission.

100G CFP DWDM Transceiver PDF Download Contact Us

100G CFP DWDM Transceiver Feature

  • DP-DQPSK modulation mode

  • C band 50GHz ITU-T transmit

  • Built-in client-side and line OTN processing

  • Compatible with OTU4 and 100GE

  • Compatible with OTL4.10 and CAUI

  • Conform to CFP MSA standard

  • Hot-swappable electrical packaging interface

  • Operating optical data rates up to 128 Gbps

  • Low latency H-FEC/SD-FEC


100G CFP DWDM Transceiver Diagram

  • Metropolitan DCI interconnection

  • DWDM long-distance transmission


100G CFP DWDM Transceiver Specification

Item

CFP-DCO ZR

CFP-DCO MR

CFP-DCO LH

Rate

100GE/OTU4

100GE/OTU4

100GE/OTU4

Application

P2P DWDM ZR

Metro DWDM

Long-Haul DWDM

Dispersion-free compensation tolerance

120km

600km

1200km

10G/40G hybrid transmission

Low latency SD-FEC

Support C-band 96-wave (50GHz) tunable

CAUI for 100GE host Interface

OTL4.10 for OTU4 host interface

Built-in OTN processing

Interoperability with G.709 FEC

PRBS generation and detection of Line and Host Interface

Compliance with CFP MSA standard
