80km Dispersion Compensation Fiber

80km Dispersion Compensation Fiber

  • 80km Dispersion Compensation Fiber

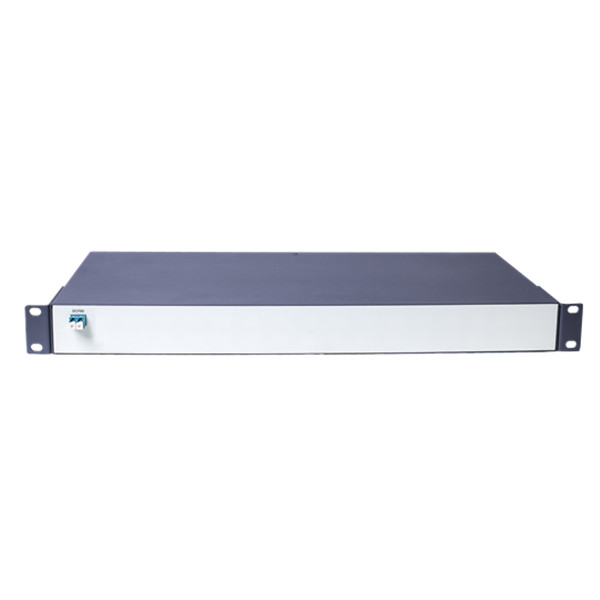

Dispersion compensation modules are available for any dispersion values from 10km to 140km compensation distance for transparent data rates between 10Mbps and 40Gbps, with this DCF80A for dispersion up to 80 km. They can be used both for single-channel and multi-channel DWDM optical fiber communication systems and typically connect to an Optical Amplifier.


Sintai Dispersion Compensation modules (DCF) are purely passive modules that are based on dispersion slope compensating fiber in 19-inch single slot Rack Mount configuration. They serve at optical communication nodes to compensate the dispersion with optimized residual dispersion for standard single-mode fiber (G.652) in the C-band in optical transmission systems.

80km Dispersion Compensation Fiber PDF Download Contact Us

80km Dispersion Compensation Fiber Feature

  • Dispersion Compensation lengths 80km

  • Purely passive component supporting high reliability

  • Compensates standard single-mode G.652 optical fiber

  • Compatible with C-Band DWDM optical channels

  • Protocol transparent ranging from 10 Mbps to 40 Gbps

  • Operation with a booster amplifier or a pre-amplifier to get excellent character

  • Single-slot 1U 19" rack mount design

  • Low end-to-end insertion loss

  • Operating Temperature: -5°C ~ 55°C

  • Storage Temperature: -40°C ~ 85°C

  • CE ROHS compliant


80km Dispersion Compensation Fiber Application

  • Provides dispersion compensation for extended reach applications

  • Provides pre- and post-compensation

  • Provides single- or multi-channel dispersion compensation


80km Dispersion Compensation Fiber Specification

Item

Perimeter

Equivalent G.652 compensation length

20Km

40Km

60Km

80Km

100Km

120Km

1545nm wavelength dispersion (ps/nm)

-340±20

-670±30

-1000±40

-1340±50

-1670±60

-2040±60

1545nm relative dispersion slope (nm-1)

0.004±20%

Insertion loss (dB)

≤3.5

≤5.0

≤6.8

≤8.7

≤10.7

≤12.9

Polarization mode dispersion (ps)

≤0.5

≤0.8

≤1.0

≤1.2

≤1.3

≤1.4

Polarization dependent loss (ps)

≤0.1

≤0.1

≤0.1

≤0.1

≤0.1

≤0.1

Optical reflection (dB)

-27

Maximum permissible input power (dBm)

+23

Working temperature range

-5°C~70°C

Storage temperature range

-40°C~85°C

Environmental/Reliability Testing

Conform to Telcordia GR-2854 and GR1221standard

Interface type

LC/PC or to be customized

Packaging

Pluggable chassis: 1U, (D)220mm×(W)442mm×(H)44mm

Rackmount: 1U, (D)220mm×(W)442mm×(H)44mm
