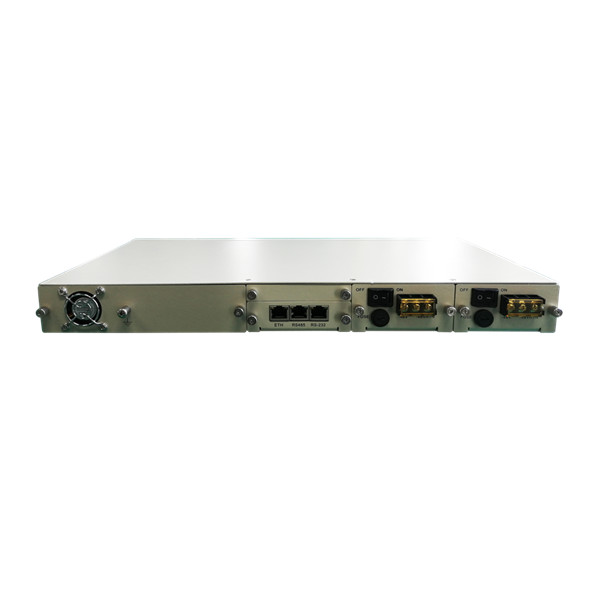

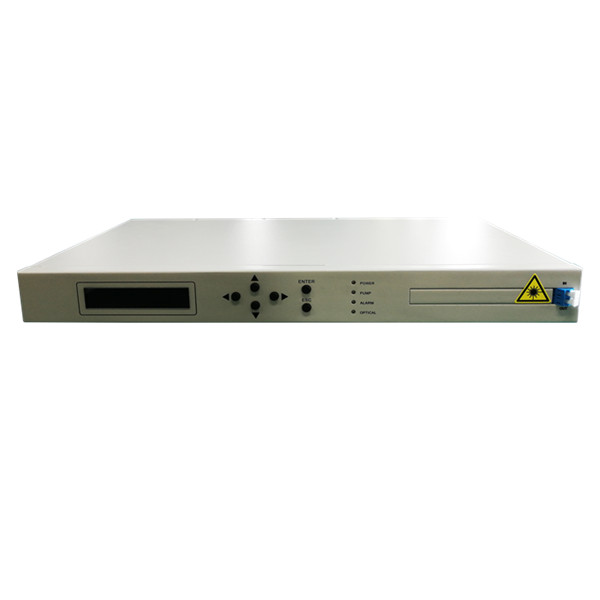

This product is a high-power Raman Amplifier module that is used in low noise, long span, or high-speed optical transmission systems. Applying transmission fiber as the gain medium to form distributed amplification which can reduce system noise and get the best gain and noise index.

1U Raman Amplifer Equipment PDF Download Contact Us

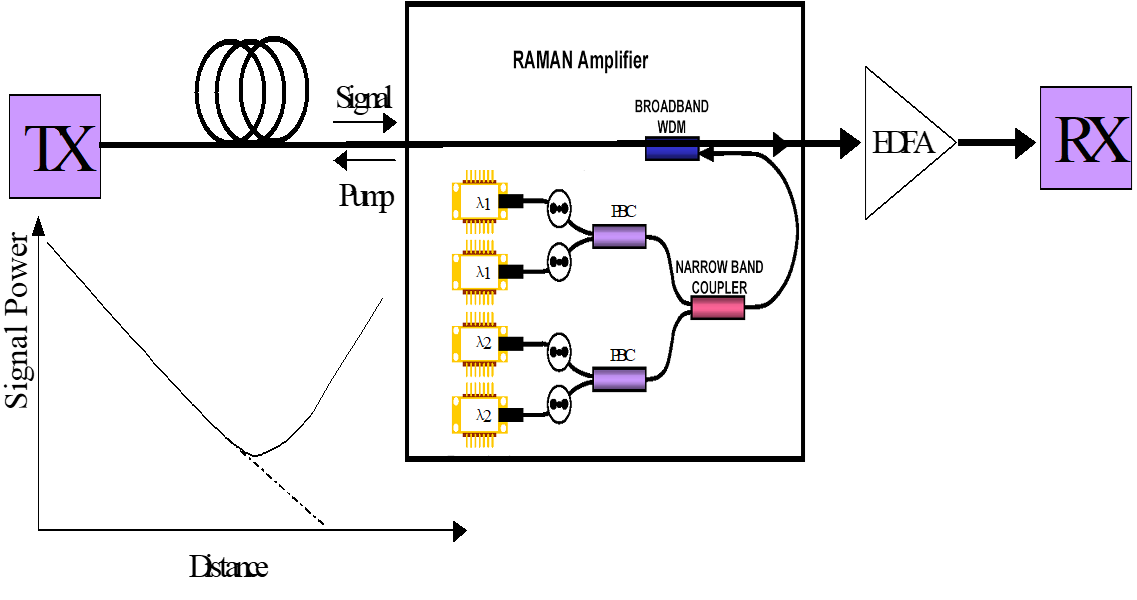

1U Raman Amplifer Equipment Function Diagram


1U Raman Amplifer Equipment Features

  • Distributed low-noise amplification.

  • Easy control and operation: Dual CPU process control Loops.

  • Interface respectively.

  • High stability and reliability.

  • Single-channel, DWDM, or C+L band is available.

  • Intelligent temperature control system: power consumption and hot.

  • Radiation reduces 30% than common products.

  • Pump polarization-Independent design.


1U Raman Amplifer Equipment Technical Specifications

Environmental Requirements

Table 2-1 Environmental Characteristic

Parameters

Min.

Max.

Unit

Working Temperature

-5

+60

Storage Temperature

-40

+80

Humidity

5

85

%

Note: non-condensing


Mechanical/ Power/ Interface Characteristics

Table 2-2 Mechanical/ Power/ Interface Characteristics

Parameters

Min.

Typ.

Max.

Unit

Size

1U  H×D×W≤44x236x483

mm

Weight

-----

-----

7

Kg

Power Consumption (1)

-----

-----

18

W

Cooling

Air cool fans

Power Supply (2)

85/170

110/220

132/264

VAC

Interface

RS-232, Ethernet

(1) Actual consumption depends on the output power and environment temperature.

(2) 110VAC, 220VAC and -48VDC is optional.


Optical Specifications

Table 2-3 Optical Characteristics

Parameter

Symbol

Min

Typ

Max

Units

Operating wavelength

λc

1525

1550

1565

nm

Pump wavelength

λp

1425

------

1505

nm

Pump output power(1)

Po

------

500

1000

mW

ON/OFF Gain(1)

G

6

------

15

dB

Gain Flatness(2)

FL

------

1

2

dB

Polarization Dependent Gain

PDF

------

-------

0.3

dB

PMD

PMD

------

-------

0.3

ps

Relative Noise Figure

NF

------

------

0

dB

(1) Optional.

(2) Test at 0 dBm input.
