100G Muxponder

100G Muxponder

100G Noncoherent DWDM Transponder

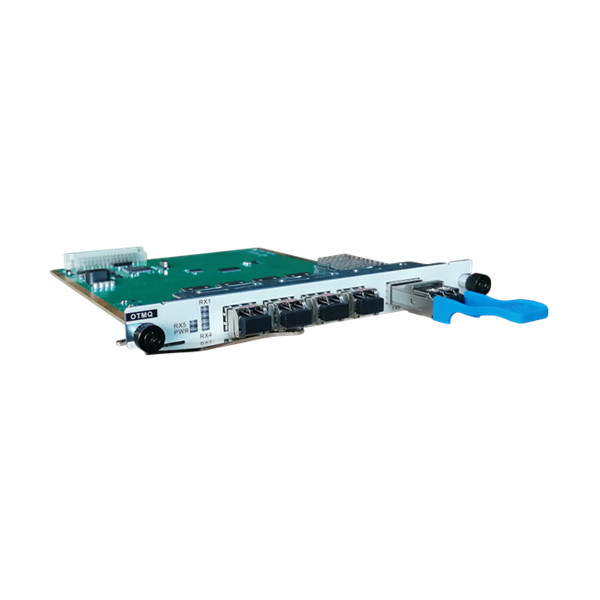

  • 100g incoherent dwdm transponder 1

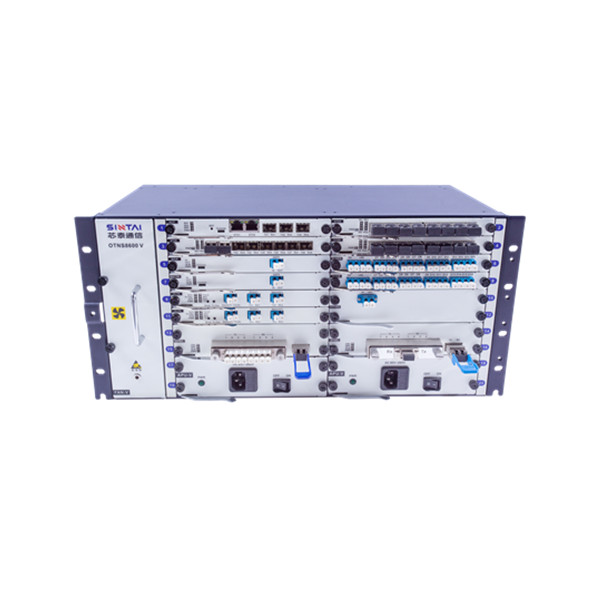

  • 100g incoherent dwdm transponder 2
  • 100g incoherent dwdm transponder 1
  • 100g incoherent dwdm transponder 2

40G&100G muxponder service card launched by Sintai Communications Co., Ltd. supports 4x10G↔40G or 4x25G↔100G electrical layer multiplexing/demultiplexing, and transforms the multiplexed/demultiplexed optical signals into WDM standard wavelength optical signals.


It can facilitate the wavelength division multiplexing of the optical signals of different wavelengths by mux unit, and simultaneously implementing the inverse process of the above process.


It's suitable for 10G~25G forward multiplexing or 40G/100G inverse multiplexing wavelength division short-distance transmission solution.

100G Muxponder PDF Download Contact Us

Products
Blog

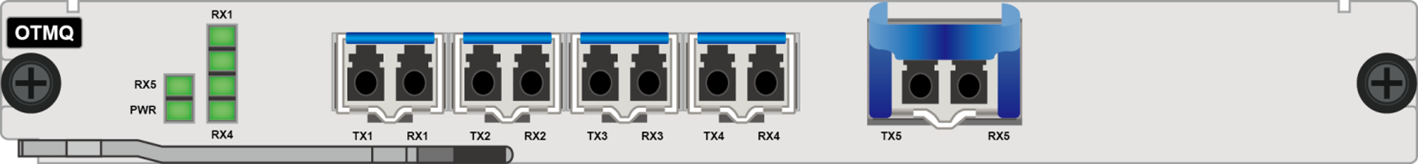

100G Noncoherent DWDM Transponder Diagram

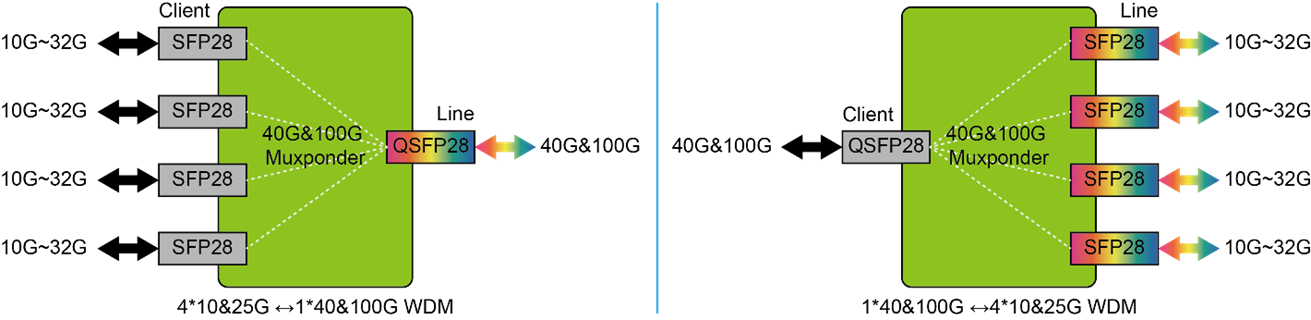

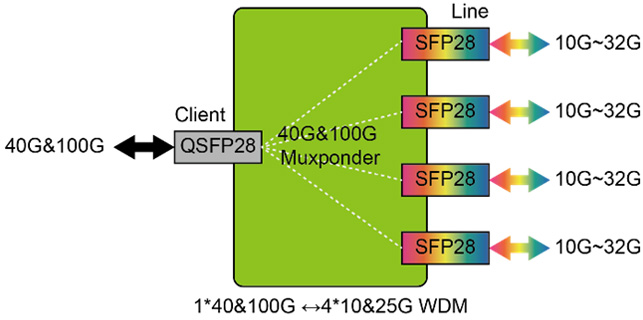

100G Noncoherent DWDM Transponder Functional Structure




100G Noncoherent DWDM Transponder Specification

Function

Note

Application

4x10G↔40G & 4x25G↔100G

40G↔ 4x10G & 100G↔4x25G

interface

  • Client-side interface: 4 SFP28l hot-pluggable, compatible with SFP+

  • WDM-side interface: 1 QSFP28 hot-pluggable, compatible with QSFP+

  • Client-side interface: 1 QSFP28 hot-pluggable, compatible with QSFP+

  • WDM-side interface: 4 SFP28 hot-pluggable, compatible with SFP+

Basic function

Supports 4*10G & 4*25G service optical signals to be multiplexed into one 40&100G rate WDM standard wavelength optical signal

Supports one 40&100G service optical signal demultiplexed into 4*10G & 4*25G rate WDM standard wavelength optical signals

Support service type

  • 10GE, 25GE

  • 8G/10G/16G FC (compatible 32G )

  • STM-64, OTU2, CPRI/eCPRI

  • 40GE, 100GE

  • OTU3, OTU4

WDM technology

Support DWDM: C band 100GHz 40 waves

Support CWDM: 18 waves

Support DWDM: C band 50GHz 80 waves

Occupied slot number

Support OTNS8600 series chassis, occupy 1 slot

Network management function

  • Support real-time monitoring of the port working state, including transmitting optical power and receiving optical power, temperature, etc.

  • Support port loopback and port shutdown.

Power consumption

13W (max, including transceiver)

MTBF

＞100000 hours
