1x100G+10x10G→1x200G Muxponder

1x100G+10x10G→1x200G Muxponder

  • 514
  • 514 2
  • 514
  • 514 2

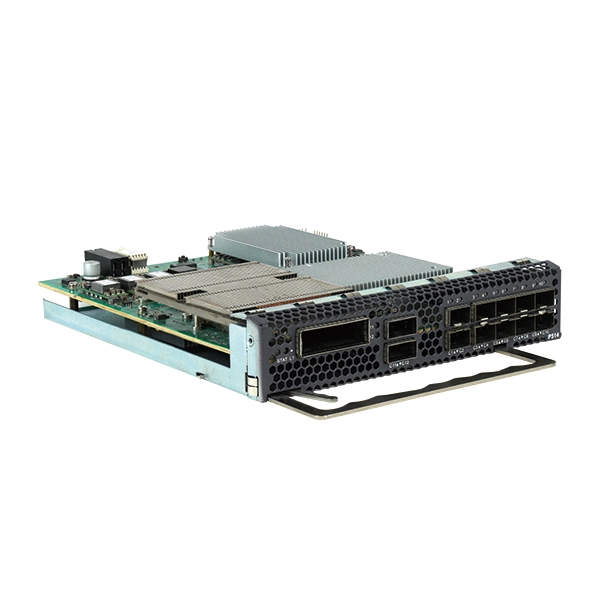

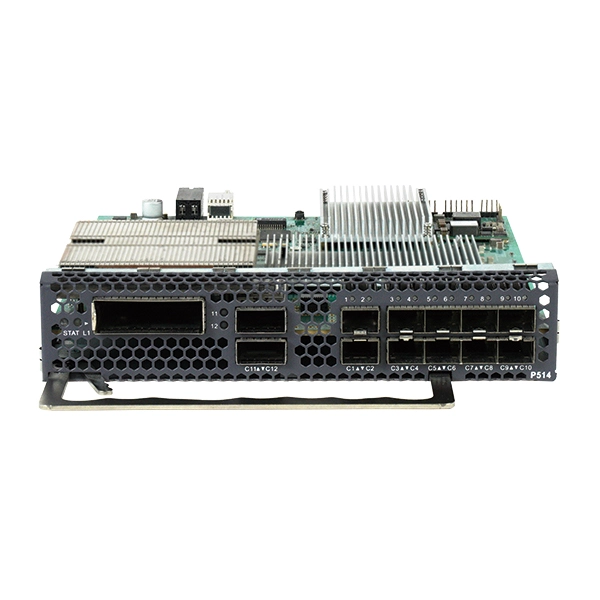

The 2*100G+10*10G+ Muxponder service card (P514) launched by Sintai Communication supports mapping 2x100G optical signals or 1x100G+10x10G optical signals received on the client side to 1 OTUC2 signal and interconverting OTUC2 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2-DCO to achieve ultra-long distance transmission based on advanced technologies such as coherent detection.

1x100G+10x10G→1x200G Muxponder PDF Download Contact Us

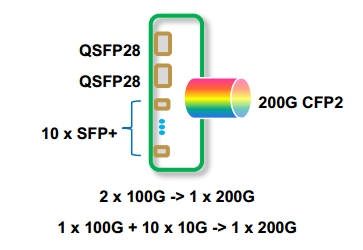

Function Structure



  • Suitable for transmission over metropolitan networks and long-distance networks up to 1000 km

  • Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.

  • Suitable for 200G links in existing OTN/DWDM infrastructures

Product Specification

200G Muxponder (P514)


  • Support 2x100G service signals mapping to 1 OTUC2 signal

  • Support 1x100G + 10x10G service signals mapping to 1 OTUC2 signal

Slot number

2 slots

Line side

● 1 CFP2 port: adopts 200G & 400G CFP2-DCO module, hot-pluggable

● Support wavelength adjustable, covering 191.35~196.1 THz

● Support light-emitting power adjustable

● Support single fiber bidirectional transmission (optional)

Client side

Support 2 QSFP28, 10 SFP+ modules, hot-pluggable

OTN function

● Frame format and overhead handling using ITU-T G709 recommendations

● ODUk (k=2, 2e, 4, C2) layer: support for PM and other functions.

● OTUk (k=2, 2e, 4, C2) layer: support for SM functions

Support service types

10GE, 100GE, 100GE FlexE(Unware) , STM-64, 10GE_WAN, FC800, FC1600, FC3200, OTU2, OTU2e, OTU4

Time delay measurement

Support line-side online delay measurement based on ODU layer

Loop back

Support line side and client side loopbacks


10GE, 100GE service support


Client side support when accessing non-OTN services

Performance monitoring and alarm monitoring

  • Support OTN performance monitoring and alarm monitoring

  • Support temperature, current and power monitoring of optical module

  • Support Ethernet RMON monitoring

  • Support Telemetry
