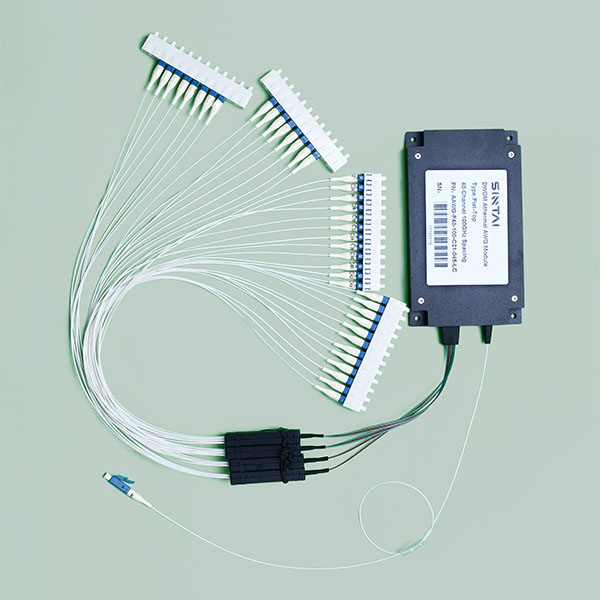

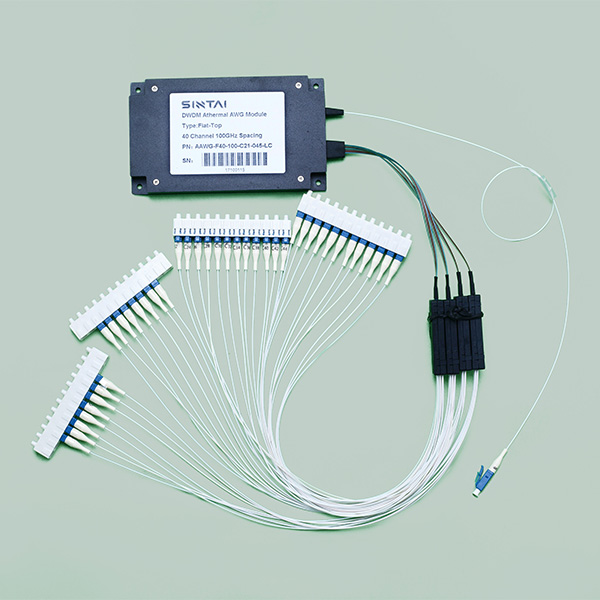

Athermal AWG Module

Athermal AWG Module

  • Athermal AWG Module
  • Athermal AWG Module
  • Athermal AWG Module
  • Athermal AWG Module

The athermal Array Waveguide Grating Module (AWG) from Sintai is based on waveguide grating technology on the silicon substrates and adopts the unique thermal-free package design, which is a completely passive DWDM solution without power, software, or temperature control.


Accurate channel coupling, low insertion loss, high channel isolation, and high stability can be achieved. Each module has multiplexing and de-multiplexing functions and is one of the most important devices in the DWDM system.

Athermal AWG Module PDF Download Contact Us

Athermal AWG Module Feature

  • Low insertion loss

  • High channel isolation

  • High stability and reliability

  • Low polarization dependent loss

  • Multi-channel number


Athermal AWG Module Specification

Parameter

Unit

characteristic



Gauss

Flat top

ITU

GHz

±12.5

Channel Spacing

nm

0.8nm(100GHz)

Channel Number


40、48or customers specified

Wavelength accuracy

nm

≤0.05

Channel Insertion Loss

dB

≤5.0

≤5.5

-1dB Bandwidth

nm

≤0.2

≤0.34

-3dB Bandwidth

nm

≤0.4

≤0.51

Adjacent Channel Isolation

dB

≥25

Non-Adjacent Channel Isolation

dB

≥30

Total isolation

dB

≥22

≥23

Channel Ripple

dB

≤1.5

Return Loss

dB

≥45

Directivity

dB

≥50

PDL

dB

≤0.5

PMD

ps

≤0.5

Power Handling

mW

≤300

Operating Temperature

°C

-10~+70

Storage Temperature

°C

-40 ~+85

Fiber Type

-

Corning SMF-28e Ultra

Package Size

mm

120x70x12
