200G OTN Muxponder

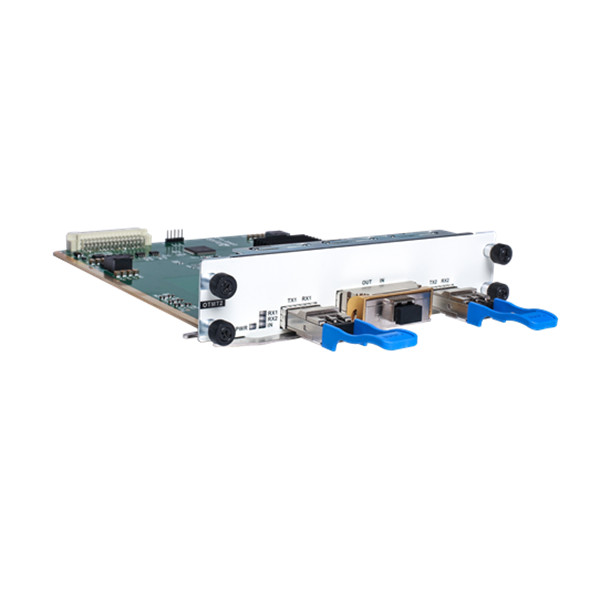

  • 200g otn muxponder 1

The 200G Muxponder board launched by Guangzhou Sintai Communication Co., Ltd. supports 2x100G↔200G electrical layer multiplexing / demultiplexing and is converted into a 200G rate WDM standard wavelength optical signal so that the multiplexing unit can deal with different wavelengths of light.


The signal is wavelength-division multiplexed, and at the same time, the reverse of the above process is realized.


The line side adopts advanced technologies such as DP-8QAM or DP-16QAM modulation and coherent reception, which overcomes the challenges of high-speed transmission systems for the physical effects of transmission such as OSNR requirements, CD tolerance, PMD tolerance, and non-linearity.


800 kilometers without electric relay transmission, and supports C-band 96-wave (50GHz) tunable.

200G Muxponder PDF Download Contact Us

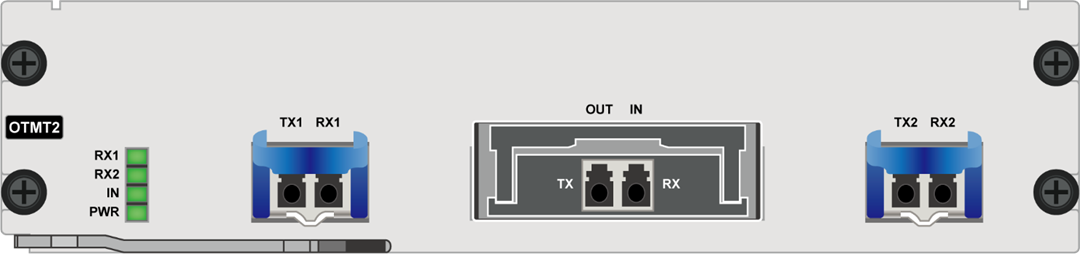

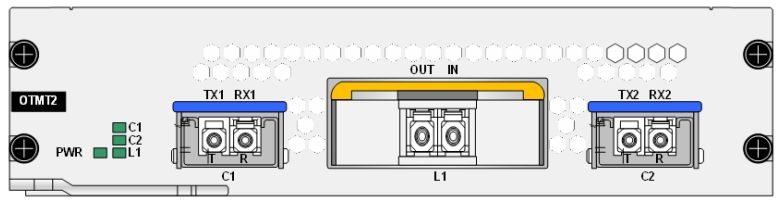

200G OTN Muxponder Diagram

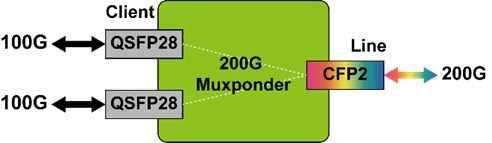

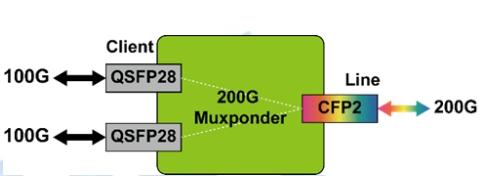

200G OTN Muxponder Functional Structure




200G OTN Muxponder Specification

Function

Note

Interface

  • Client-side interface: 2 QSFP28 hot-pluggable

  • WDM-side interface: 1 CFP2 hot-pluggable, coherent DP-8QAM or DP-16QAM

Line mode

Support two 100G service transmissions, transform two 100G service optical signals into one 200G DWDM standard wavelength optical signal

Relay mode

Support 200G wavelength electrical relay

Support service type

  • 100GE

  • OTU4

WDM technology

Support DWDM: C band 50GHz 96 wavelengths adjustable

FEC technology

Support SDFEC and G.709 FEC

Occupied slot number

Support OTNS8600 series chassis, occupy 2 slots

Network management function

  • Support real-time monitoring of the port working state, including transmitting optical power and receiving optical power, temperature, etc.

  • Support port loopback and port shutdown

Max power consumption

30W (including transceiver)

MTBF

>100000 hours
