100G CFP Transponder

100G CFP Transponder

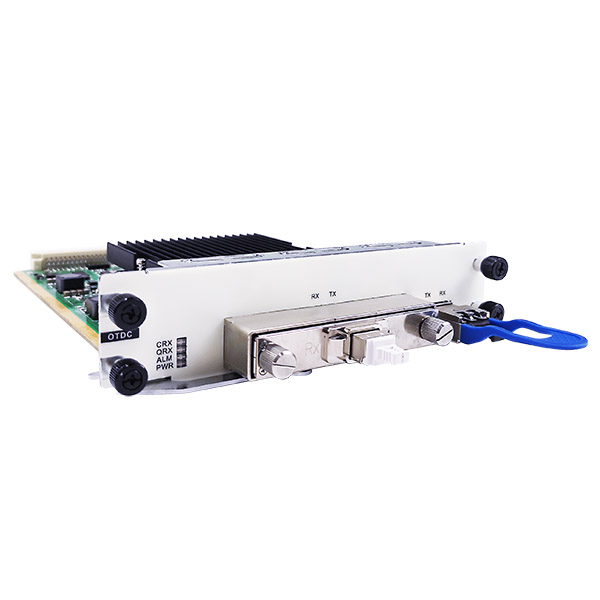

  • 100g conherent dwdm transponder 1

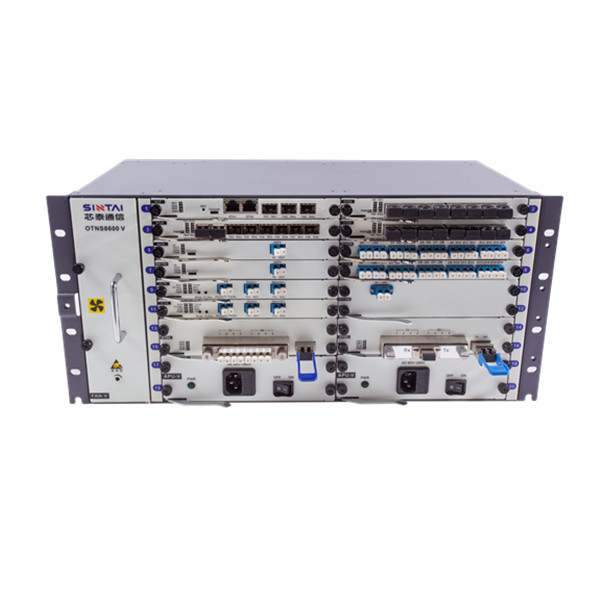

  • 100g conherent dwdm transponder 3
  • 11
  • 100g conherent dwdm transponder 1
  • 100g conherent dwdm transponder 3
  • 11

The 100G CFP Transponder launched by Sintai Communication Co., Ltd. supports one 100G service access, adopts advanced technologies such as PDM-QPSK modulation and coherent reception, and overcomes the OSNR requirements, CD tolerance, and PMD tolerance of high-speed transmission systems. And the nonlinear physical effects of transmission, such as 100G service 1200 km or more of non-electrical relay transmission, and the line side interface supports C-band 96-wave (50 GHz) adjustable.


100G CFP Transponder PDF Download Contact Us

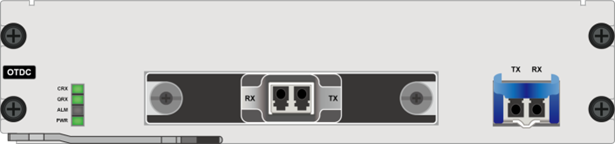

Product Diagram


Functional Structure


Product Specification

Function

Note

Interface

l Client-side interface: 1 QSFP28 hot-pluggable

l WDM-side interface: 1 CFP hot-pluggable, coherent PDM-QPSK

Line mode

Support one 100G service transmission, transform one 100G service optical signal into one DWDM standard wavelength optical signal

Relay mode

Support 100G wavelength electrical relay

Support service type

l 100GE

l OTU4

WDM technology

Support DWDM: C band 50GHz 96 wavelengths adjustable

FEC technology

Support SDFEC

Occupied slot number

Support OTNS8600 series chassis, occupy 2 slots

Network management function

l Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc.

l Support port loopback and port shutdown

Max power consumption

50W (including transceiver)

MTBF

>100000 hours
