2.5G C/DWDM Transponder

2.5G C/DWDM Transponder

  • 2.5G C/DWDM Transponder
  • 2.5G C/DWDM Transponder
  • 2.5G C/DWDM Transponder
  • 2.5G C/DWDM Transponder

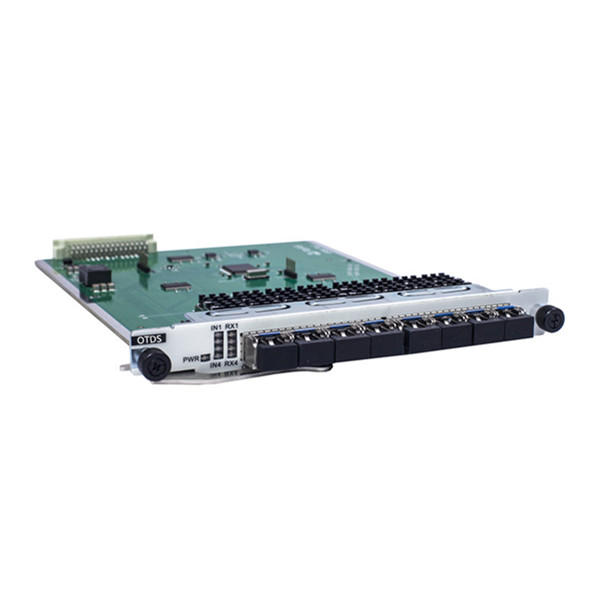

OTDS is a 4-channel 2.5G service access card launched by Sintai Communication Co., Ltd.; its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 42Mbit/s~2.67Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength, so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process.


It's applicable to the low-cost wavelength division transmission solution for any access of services with a rate of 2.5G or below.

2.5G C/DWDM Transponder PDF Download Contact Us

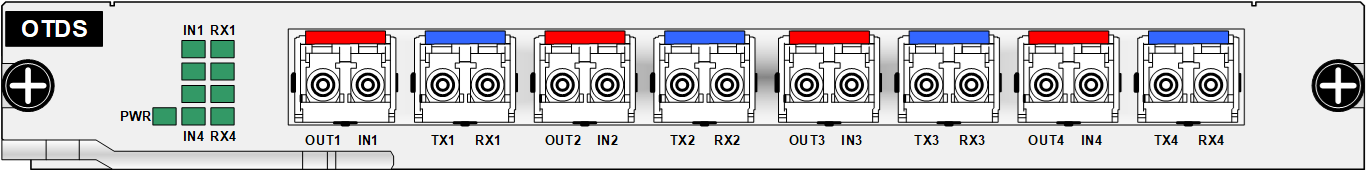

2.5G C/DWDM Transponder Diagram

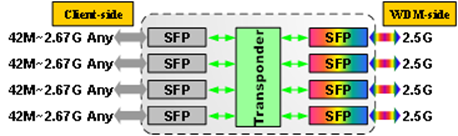

2.5G C/DWDM Transponder Functional Structure




2.5G C/DWDM Transponder Specification

Product Model

OTDS

Basic function

  • Support bidirectional transmission of 4-channel services with any rate of 42Mbit/s~2.67Gbit/s

  • Support unidirectional transmission of 8-channel services with any rate of 42Mbit/s~2.67Gbit/s

Access service type

  • FE, GE, STM-1/4/16/

  • FC 1G/2G, FICON, FICON Express, ESCON

  • CPRI:614.4Mbit/s, 1.23/2.46Gbit/s

Occupied slot number

Occupy 1 slot, applicable to the platform of the whole OTNS 8600 series

WDM technology

  • Support DWDM: C Band, 100GHz or 50GHz

  • Support CWDM:1271nm~1611nm

Network management function

  • Support real-time monitoring for port working state, including transmitting optical power, receiving optical power, temperature, etc

  • Support the self-adaptation of the working rate

interface

It supports 8 pluggable optical port SFP, and the electrical interface SFP can be configured when the electrical interface service is accessed

Typical power consumption

15 W

MTBF

> 100000 hours
