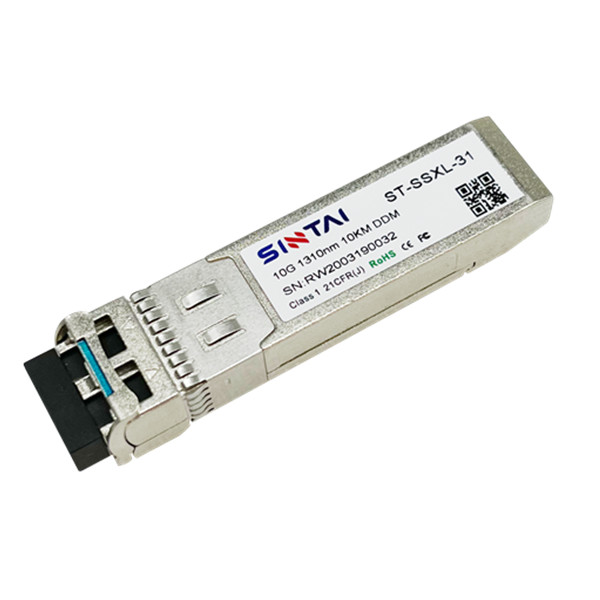

10G SFP+ Single Mode Transceiver

10G SFP+ Single Mode Transceiver

  • 10G SFP+ Single Mode Transceiver
  • 10G SFP+ Single Mode Transceiver
  • 10G SFP+ Single Mode Transceiver
  • 10G SFP+ Single Mode Transceiver
  • 10G SFP+ Single Mode Transceiver
  • 10G SFP+ Single Mode Transceiver

Designed for Ethernet, Fiber Channel, SDH, SONET, CPRI or OTN links over duplex single-mode fibers, the Sintai 10G SFP+ single-mode optical transceivers use 1310nm or 1550nm wavelength and support transmission distance up to 80km.

10G SFP+ Single Mode Transceiver PDF Download Contact Us

10G SFP+ Single Mode Transceiver Feature

  • Adopt SFP+ hot-swappable encapsulation with LC interface.

  • Support an overall rate of 1.06Gb/s~11.3Gb/s with service compatibility.

  • Support specification of singe mode.

  • Suitable for networks such as Ethernet/ FC/ SDH/ SONET/ CPRI/ OTN.

  • Single-mode optical fiber supports a transmission distance of up to 80km.

  • Built-in DDM (digital diagnostic monitoring function).

  • Working temperature: 0°C ~ +70°C.

  • Comply with RoHS standards.


10G SFP+ Single Mode Transceiver Overview

The 10G SFP+ optical communication module launched by Sintai Communication Co., Ltd is specifically designed for 10G Ethernet and 1G/2G/4G/8G/10G Fiber Channel applications, and it is compatible with STM-16/64, CPRI 2~8, OTU1/2, and other network applications.


The module conforms to the MSA protocol and supports an adaptive rate of 1.06Gbps~11.3Gbps, complying with the RoHS standard, and supporting digital diagnostic function. The single-mode optical transceiver can be used at the client-side with a transmission distance of up to 80 km.


10G SFP+ Single Mode Transceiver Specification

Model

Description

Transmission distance

Working

wavelength

Transmitting power

Receiving sensitivity

Overload power

(km)

(nm)

(dBm)

(dBm)

(dBm)

ST-SSXL-31

SFP+, single-mode, 10G, dual fiber

10

1310

-6~+0.5

≤-14

0.5

ST-SSXE-55

SFP+, single-mode, 10G, dual fiber

40

1550

-1~+4

≤-16

0.5

ST-SSXZ-55

SFP+, single-mode, 10G, dual fiber

80

1550

0~+4

≤-24

-7
