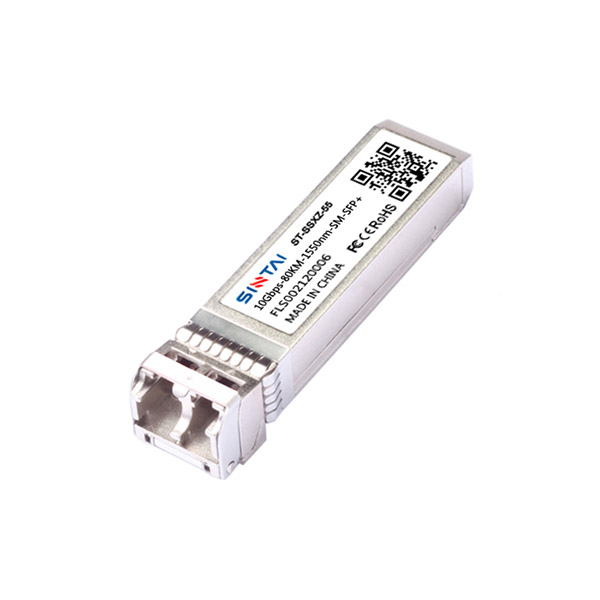

10G SFP+ DWDM Transceiver

10G SFP+ DWDM Transceiver

  • 10G SFP+ DWDM Transceiver

Designed for Ethernet, Fiber Channel, SDH, SONET, CPRI, or OTN links over duplex single-mode fibers, the Sintai DWDM 10G SFP+ optical transceivers use DWDM C-band C15-C62 wavelengths with 100GHz spacing and support transmission distance up to 80km.

10G SFP+ DWDM Transceiver PDF Download Contact Us

10G SFP+ DWDM Transceiver Feature

  • Adopt SFP+ hot-swappable encapsulation with LC interface.

  • Support an overall rate of 1.06Gb/s~11.3Gb/s with service compatibility.

  • Support specification of DWDM.

  • Suitable for networks such as Ethernet/ FC/ SDH/ SONET/ CPRI/ OTN.

  • Single-mode optical fiber supports a transmission distance of up to 80km in the DWDM system.

  • Built-in DDM (digital diagnostic monitoring function).

  • Working temperature: 0°C ~ +70°C.

  • Comply with RoHS standards.


10G SFP+ DWDM Transceiver Overview

The 10G SFP+ optical communication module launched by Sintai Communication Co., Ltd is specifically designed for 10G Ethernet and 1G/2G/4G/8G/10G Fiber Channel applications, and it is compatible with STM-16/64, CPRI 2~8, OTU1/2, and other network applications.


The module conforms to the MSA protocol and supports an adaptive rate of 1.06Gbps~11.3Gbps, with the longest transmission distance of 80 km, complying with the RoHS standard and supporting digital diagnostic function.


The DWDM optical transceiver is used in the DWDM system which adopts the dense wavelength division multiplexing technology to achieve long-distance and huge capacity transmission.


10G SFP+ DWDM Transceiver Specification

Model

Description

Transmission distance

Working

wavelength

Transmitting power

Receiving sensitivity

Overload power

(km)

(nm)

(dBm)

(dBm)

(dBm)

ST-SDXE-CXX

SFP+, DWDM, 10G

40

DWDM

(C15~C62)

-1~+3

≤-16

-1

ST-SDXZ-CXX

SFP+, DWDM, 10G

80

DWDM

(C15~C62)

0~+4

≤-24

-7
