1U Rack Mount 96CH AWG

1U Rack Mount 96CH AWG

  • 1U Rack Mount 96CH AWG

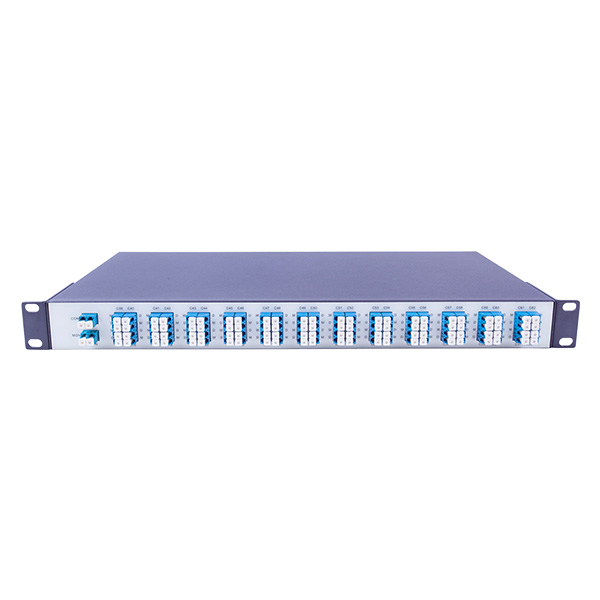

The 1U rackmount 96-channel athermal AWG product from Sintai can be installed in a standard 19-inch cabinet. It can support up to 1*96 channel athermal AWG module.


Two devices can realize dual-fiber transmission of 96 independent channels' service, which can maximize the fiber core utilization rate. When configuring with our OTU/OLP/EDFA/DCF equipment, it can greatly extend transmission distance and increase carrying capacity, and the equipment also provides Monitor optical monitoring port for real-time channel quality monitoring.

1U Rack Mount 96CH AWG PDF Download Contact Us

1U Rack Mount 96CH AWG Feature

  • Low insertion loss

  • High channel isolation

  • High stability and reliability

  • Low polarization dependent loss

  • Support 96 DWDM channels


1U Rack Mount 96CH AWG Specification

Parameter

Unit

characteristic



Gauss

Flat top

ITU

GHz

±6.25

Channel Spacing

nm

0.4nm(50GHz)

Channel Number


80, 96 or customer specified

Wavelength accuracy

nm

≤0.05

Channel Insertion Loss

dB

≤7.0

≤8.0

-1dB Bandwidth

nm

≤0.24

≤0.34

-3dB Bandwidth

nm

≤0.3

≤0.51

Adjacent Channel Isolation

dB

≥18

Non-Adjacent Channel Isolation

dB

≥25

Total isolation

dB

≥15

≥16

Channel Ripple

dB

≤1.5

Return Loss

dB

≥45

Directivity

dB

≥50

PDL

dB

≤0.5

PMD

ps

≤0.5

Power Handling

mW

≤300

Operating Temperature

°C

-10~+70

Storage Temperature

°C

-40 ~+85

Fiber Type

-

Corning SMF-28e Ultra

Package Size

mm

Standard 1U 19", 44(H)x442(W)x220(D)
