NCP Network Management Card

NCP Network Management Card

  • ncp network management card

NCP is a network management module specially designed for OTNS8600 series products by Guangzhou Sintai Communication Co., Ltd. Its main function is to provide the interface between equipment and network management system. With the NS2000 network management system of OTNS8600 series, NCP completes the single card management, various maintenances and management signal transmission of network element, and realizes the real-time monitoring, maintenance and management of equipment element and the whole synchronous equipment network. It provides a good solution for equipment monitoring.


NCP Network Management Card PDF Download Contact Us

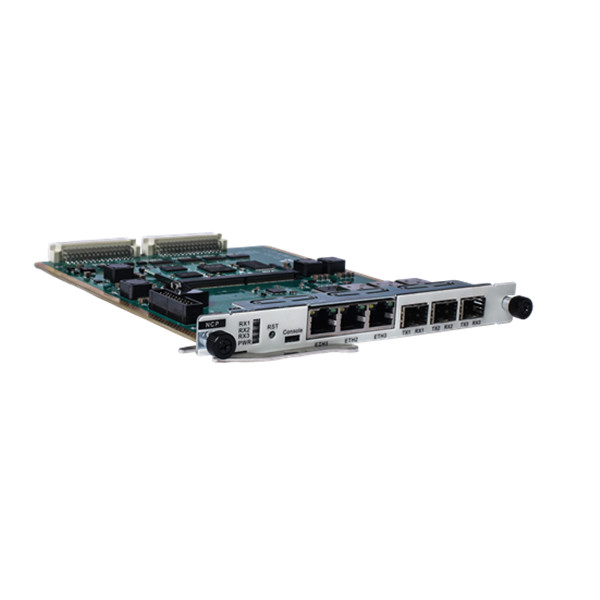

Product Diagram



Product Feature

  • Adopt high-speed ARM processor to provide powerful data processing capability, collect status information, alarm events and performance parameters of each single-board function module, transform, process and store them, and at the same time pass the control and management information to each other function block of the device.

  • Provide 1 Console interface to support emulation terminal operation.

  • Provide 3 RJ45 Ethernet interfaces to support IP-based graphical SNMP network management.

  • Provide 3 SFP optical module interfaces to support in-band management of the device, realize the processing of 3 optical monitoring channels, and complete the receiving and transmitting processing of optical signals of each site optical monitoring channel.

  • The network management module supports hot-swapping, which does not affect the normal work of the current service module even after failure.


Product Specification

Function

Description

Local management serial port

Support 1 Micro-USB local management serial port

Remote management Ethernet port

Supports 3 RJ45 Ethernet interfaces, interface rate 10/100/1000M adaptive

OSC optical monitoring port

Supports 3 pluggable optical SFP ports with LC interface

Network management method

Support CLI, Telnet, SNMP, Web and other network management methods

Exchange function

Support IP communication between devices to realize integrated management

Protection function

Plug out or failure of network management card will not affect existing service

Maintenance function

Support local or remote software online upgrade

Reset function

Support hardware reset of local NCP card by operating key

Initialization function

Support initialization of local NCP card hardware by operating key

working temperature

-10℃~+60℃

Working humidity

5%~95%

Number of occupied slots

Support OTNS8600 full range chassis, occupying 1 slot

Maximum power consumption

5W

MTBF

>100000 hours

Default IP address of factory

192.168.1.100
